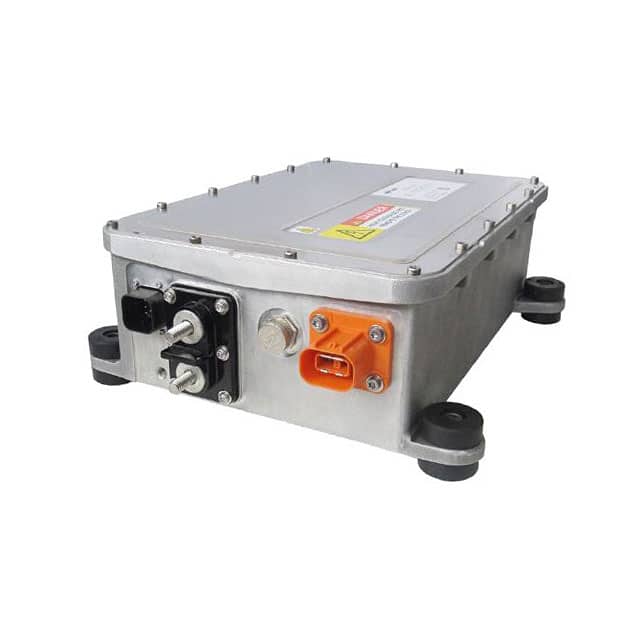

The Bel Power Solutions 350DNC40-24-CG is a high-power DC/DC converter series designed for hybrid and electric vehicle applications, suitable for powering low-voltage accessories. This convection-cooled model operates with input voltages ranging from 240 to 430 VDC and delivers up to 3300 W of power.
Key electrical specifications include a nominal output voltage of 28 VDC, adjustable via CAN bus, with a maximum output current of 120 A. The converter boasts very high efficiency up to 93% and features full galvanic isolation between input and output. It offers protection against over-temperature, output overvoltage, and overcurrent conditions, along with input and output reverse polarity protection.
Mechanically, the unit is designed for chassis mounting and has dimensions of 342 x 350 x 187 mm. It meets protection degrees IP65 and IP67. The operating temperature range is -40°C to 45°C, making it suitable for demanding automotive environments.
This converter is E-Mark approved, indicated by approval number E13*10R00*10R05*13602*00, highlighting its suitability for automotive use.
| Qty | Low | High |
|---|---|---|
| 1+ | $5,775.00 | $5,775.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 350DNC40-24-CG offers up to 3300 W of output power for convection-cooled models.
The input voltage range for the 350DNC40-24-CG is 240 to 430 VDC.
The output voltage is 24 VDC, adjustable via CAN BUS with a 10-bit resolution.
The convection-cooled model delivers a maximum output current of 120 ADC.
The operating temperature range is -40°C to 45°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
