| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,100 pcs
|
4100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
558 pcs
|
558 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Style | |
| Termination | |
| Termination Style |

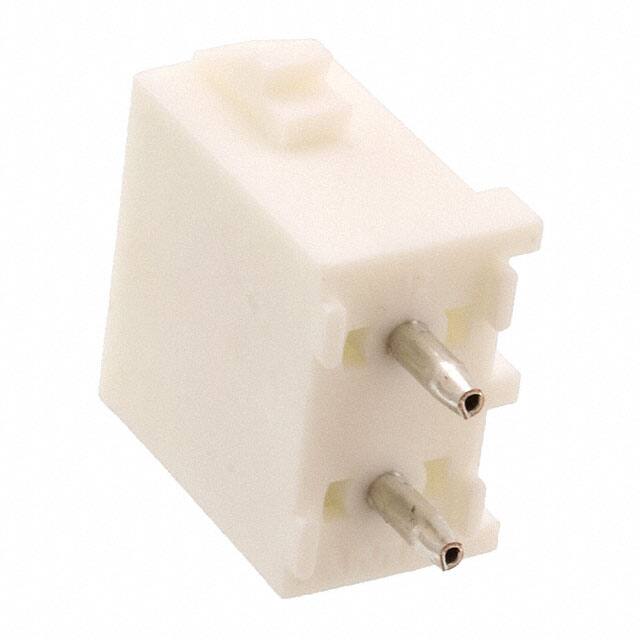

The TE Connectivity 350824-1 is a 2 position single row through hole header designed for board to cable/wire applications. It features a 6.35mm (0.250") pitch and tin plated female socket contacts. The connector has a white insulation body with a locking ramp fastening type and an insulation height of 13.97mm (0.550"). The contact length is 3.94mm (0.155") and termination is via solder. The housing material has a UL94 V-0 flammability rating. All positions are loaded. This header is suitable for use in a variety of wire-to-board interconnection applications where a secure locking mechanism is desired.
2 positions, all loaded.
6.35mm (0.250").
Through hole with solder termination.
Tin.
13.97mm (0.550").
