| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,600 pcs
|
11600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

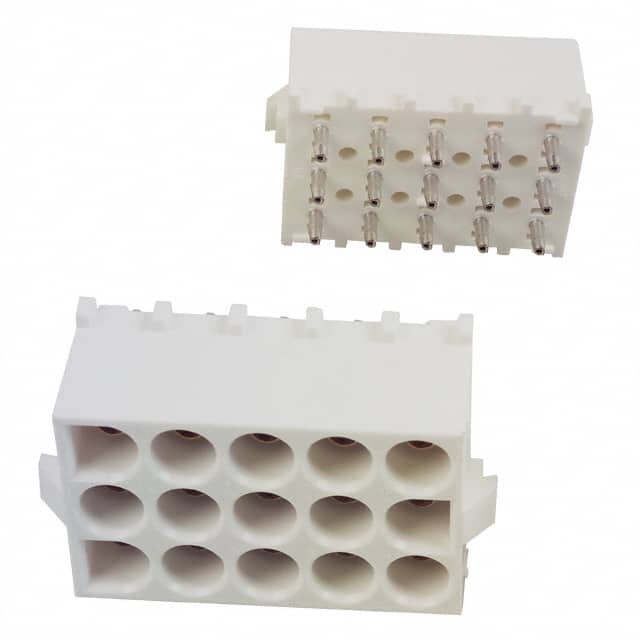

The TE Connectivity 350738-1 is a 15-position, 3-row shrouded header designed for board-to-cable/wire applications. It features a 6.35mm (0.250") pitch and row spacing, with all positions loaded. The header uses male pin contacts made of phosphor bronze with a tin finish, and the insulator is natural polyamide (PA) nylon rated UL94 V-0.
This through-hole component has a contact length of 5.46mm (0.215") and an insulation height of 13.97mm (0.550"). The 4-wall shrouding provides robust protection for the contacts, and the locking ramp fastening ensures secure mating with compatible receptacles.
Designed for reliable connections in industrial and commercial equipment, this header is suitable for applications requiring a durable, polarized interconnect. The tin contact finish offers good solderability and corrosion resistance.
15 positions, all loaded, in 3 rows.
6.35mm (0.250") pitch with the same row spacing.
Through hole with solder termination.
Tin finish on phosphor bronze contacts.
Yes, it has a 4-wall shrouded design with a locking ramp fastening.
Polyamide (PA) nylon with UL94 V-0 rating.
