| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,565 pcs
|
6565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
633 pcs
|
633 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applies To | |
| Assembly Integration Feature | |
| CSA | |
| Centerline | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Layout Matrix | |
| Contact Retention | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Glow Wire Rating | |
| Housing Color | |
| Housing Material | |
| Insertion Force | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Voltage | |
| Packaging Method | |
| Packaging Quantity | |
| Row Spacing | |
| Sealed Condition | |
| UL | |
| UL Flammability Rating | |
| VDE |

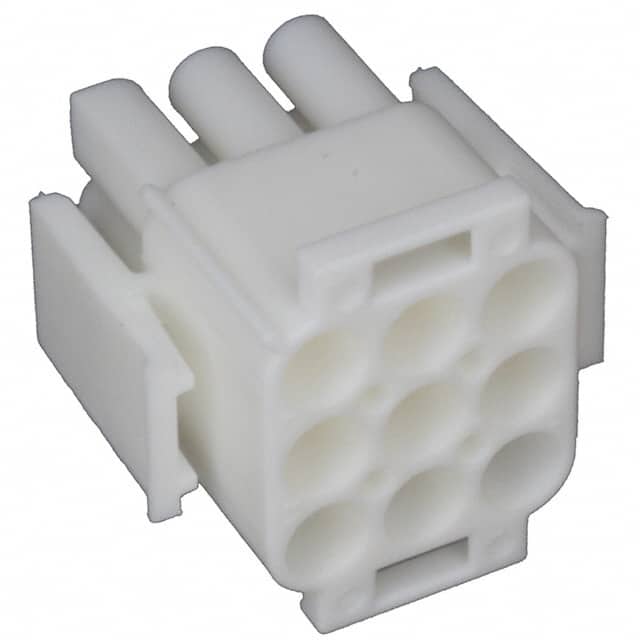

The TE Connectivity 350720-1 is a 9-position plug housing designed for Universal MATE-N-LOK connector systems. It supports wire-to-board applications with a crimp termination style and a latch lock fastening mechanism. The housing is made of natural nylon GF material with UL 94V-0 flammability rating, suitable for a wide range of environments.
Key specifications include a 6.35 mm centerline, 3 rows, and a row-to-row spacing of 6.35 mm. It is rated for 600 VAC operating voltage and operates over a temperature range of -55°C to 125°C. The insertion force is 22.2 N, and the housing is not sealed.
This plug housing is part of the Universal MATE-N-LOK series, offering reliable performance in power and signal applications. It is designed for free hanging (in-line) mounting, making it ideal for harness assemblies and direct wire connections.
The 350720-1 has 9 positions.
The centerline is 6.35 mm.
The operating voltage is 600 VAC.
The mounting type is Free Hanging (In-Line).
The operating temperature range is -55°C to 125°C.
Yes, the housing has a UL flammability rating of UL 94V-0.
The contact termination is crimp.
