| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,568 pcs
|
2568 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

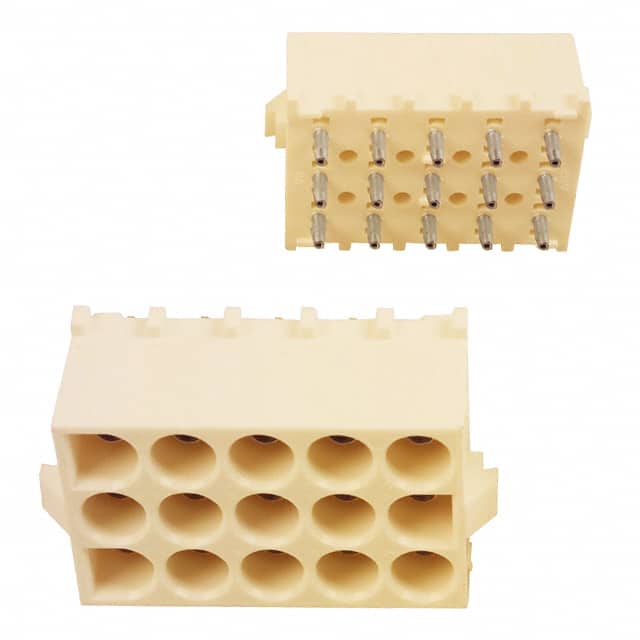

The TE Connectivity 350714-2 is a 15-position shrouded header designed for board-to-wire/power applications. It features three rows of circular phosphor bronze male pins with a tin finish (0.76µm thickness). The header uses a through hole solder termination with a 6.35mm pitch and 6.35mm row spacing.
The insulator is natural polyamide (nylon), rated UL94 V-0 for flammability. The contact length is 3.94mm and the insulation height is 13.97mm. A 4-wall shrouding with locking ramp provides secure cable-to-board mating. According to the TE compliance document, this part is not lead free process capable and has low halogen content (Br, Cl, F, I <900 ppm). RoHS status is listed as Not Yet Reviewed.
The pitch is 6.35mm (0.250"), with row spacing also 6.35mm.
It has 15 positions across 3 rows, all positions loaded.
Through hole mounting with solder termination.
Yes, it is shrouded with a 4-wall design and locking ramp.
Natural polyamide (nylon) rated UL94 V-0.
Tin finish, 0.76µm (30µin) thick on phosphor bronze contacts.
