| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

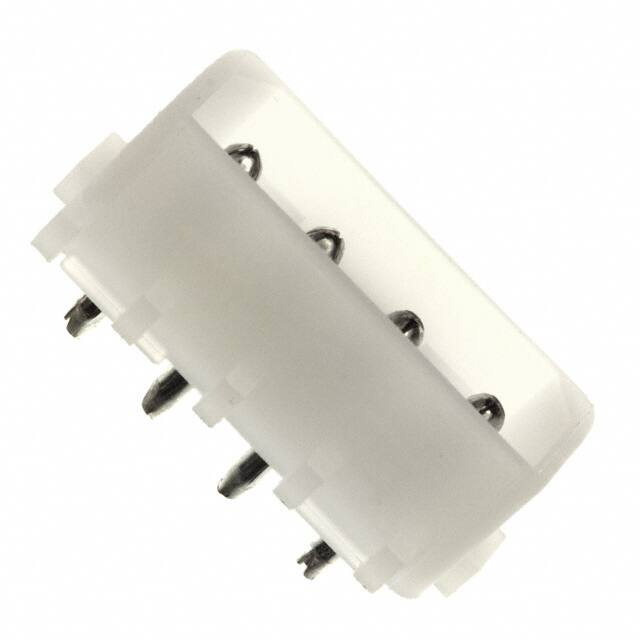

The TE Connectivity 350424-1 is a 4 position, single row, shrouded header designed for board-to-cable/wire applications. It features a 5.08mm pitch and a 4-wall shrouded housing for robust mating. The header uses male pin contacts made of copper alloy with a tin finish, ensuring reliable conductivity.
This connector is rated for 12A of current and 250VAC, making it suitable for power and signal distribution. It operates over a temperature range of -55°C to 105°C. The insulation is made from natural colored polyamide (nylon) with a UL94 V-2 flammability rating.
The header is designed for through hole mounting with solder termination. It includes a detent lock fastening system for secure connection. The contact length is 4.60mm and the insulation height is 9.53mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.61 | $1.61 |
| 10+ | $1.40 | $1.40 |
| 25+ | $1.30 | $1.30 |
| 100+ | $1.18 | $1.18 |
| 250+ | $1.13 | $1.13 |
| 500+ | $0.98 | $0.98 |
| 1,000+ | $0.92 | $0.92 |
| 3,000+ | $0.91 | $0.91 |
| 6,000+ | $0.86 | $0.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 350424-1 has 4 positions, all loaded.
The pitch is 5.08mm (0.200 inches).
The current rating is 12A.
The voltage rating is 250VAC.
The mounting type is through hole.
The operating temperature range is -55°C to 105°C.
The contact finish is tin.
