| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Centerline | |
| Connector Line | |
| Contact Base Material | |
| Contact Diameter | |
| Contact Finish | |
| Contact Plating, Mating Area, Material | |
| Contact Termination | |
| Contact Termination Type | |
| Contact Type | |
| Current Rating | |
| ELV | |
| High Current | |
| Lead Style | |
| Packaging Method | |
| Pin or Socket | |
| Stock Thickness | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Insulation Diameter | |
| Wire Range |

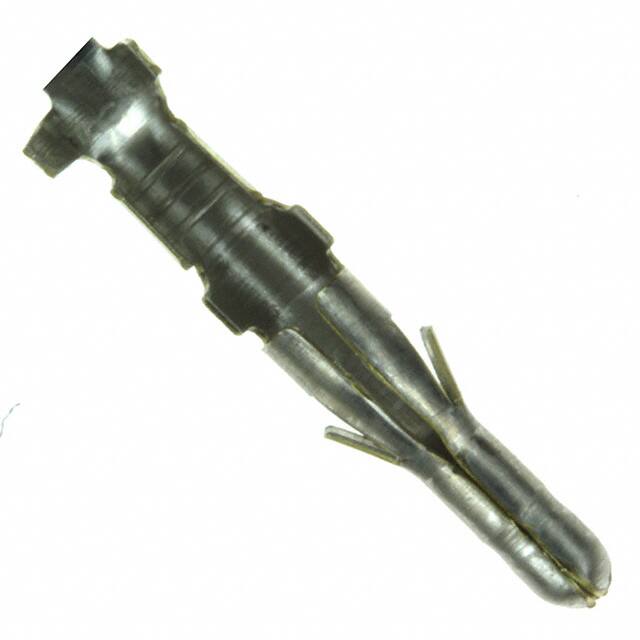

The TE Connectivity 350416-1 is a crimp-type pin contact designed for use in Commercial Pin and Socket connector housings. It accepts wire sizes from 14 to 20 AWG (0.50-2.00 mm²) with a maximum wire insulation diameter of 3.56 mm [0.140 in]. The contact has a diameter of 2.36 mm [0.093 in] and a stock thickness of 0.25 mm [0.010 in].
Electrically, the contact is rated for 13 A of current and 250 VAC, and is not classified as a high-current contact. The contact base material is brass, and the mating area is plated with Pre-Tin for reliable conductivity. It is compatible with centerline spacings of .198, .200, and .250 in.
The 350416-1 is supplied in strip packaging for automated assembly. It is RoHS and ELV compliant, and is not intended for lead-free solder processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.11 | $0.11 |
| 10+ | $0.09 | $0.09 |
| 25+ | $0.09 | $0.09 |
| 50+ | $0.08 | $0.08 |
| 100+ | $0.08 | $0.08 |
| 250+ | $0.07 | $0.07 |
| 500+ | $0.07 | $0.07 |
| 1,000+ | $0.07 | $0.07 |
| 4,000+ | $0.06 | $0.06 |
| 8,000+ | $0.06 | $0.06 |
| 12,000+ | $0.06 | $0.06 |
| 20,000+ | $0.05 | $0.05 |
| 28,000+ | $0.05 | $0.05 |
| 40,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The manufacturer part number is 350416-1.
It accepts 14 to 20 AWG (0.50-2.00 mm²) wire.
The current rating is 13 A.
The voltage rating is 250 VAC.
Yes, the 350416-1 is RoHS compliant.
It is a pin contact with crimp termination.
The contact diameter is 2.36 mm [0.093 in].
