| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
985,000 pcs
|
985000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,500 pcs
|
8500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Termination | |
| Contact Type | |
| Current Rating (Maximum) | |
| Lead Style | |
| Packaging Type | |
| Pin or Socket | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Voltage Rating | |
| Wire Gauge |

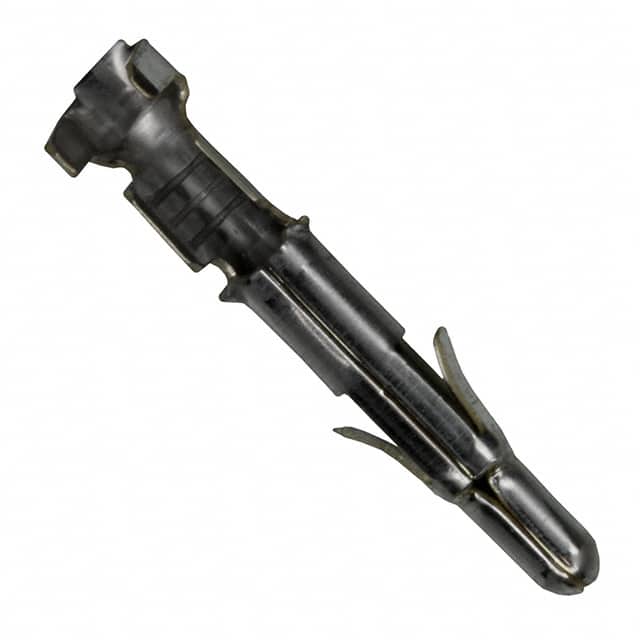

The TE Connectivity 350218-1 is a pin contact from the Universal MATE-N-LOK series, designed for use with 6.35 mm pitch rectangular connector housings. It accepts 14-20 AWG wire and is terminated by crimping. The contact is finished with tin and is rated for a maximum current of 19 A at 600 VAC.
This contact is suitable for applications requiring reliable power and signal connections in industrial machinery, household appliances, HVAC equipment, and commercial building equipment. The Universal MATE-N-LOK system offers polarized housings and positive locking latches for secure mating.
The contact is supplied in tape and reel packaging for automated assembly. It is compatible with TE Connectivity Universal MATE-N-LOK plug and receptacle housings, including those with terminal position assurance (TPA) devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.06 | $0.06 |
| 25+ | $0.06 | $0.06 |
| 50+ | $0.06 | $0.06 |
| 100+ | $0.05 | $0.05 |
| 250+ | $0.05 | $0.05 |
| 500+ | $0.05 | $0.05 |
| 1,000+ | $0.05 | $0.05 |
| 2,500+ | $0.04 | $0.04 |
| 5,000+ | $0.04 | $0.04 |
| 10,000+ | $0.04 | $0.04 |
| 15,000+ | $0.04 | $0.04 |
| 25,000+ | $0.04 | $0.04 |
| 35,000+ | $0.04 | $0.04 |
| 50,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 350218-1 accepts 14-20 AWG wire.
The maximum current rating is 19 A.
The voltage rating is 600 VAC.
The pitch is 6.35 mm.
The contact uses crimp termination.
The contact finish is tin.
RoHS compliance is reported as RoHS3 Compliant but is unverified.
