| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,563 pcs
|
5563 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

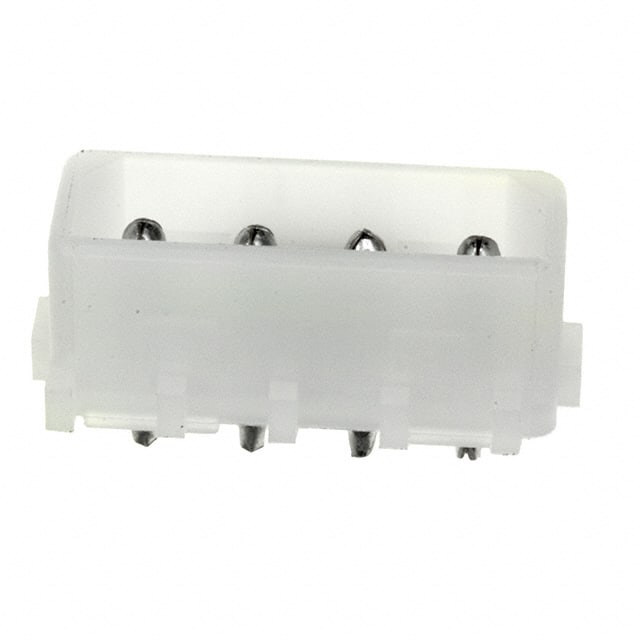

The TE Connectivity 350211-1 is a 4-position, single-row, shrouded header designed for board-to-cable/wire applications. It features male pin contacts made of phosphor bronze with a tin finish, housed in a natural polyamide (PA) nylon insulator. The connector has a 5.08mm pitch and a 4-wall shrouded design with a detent lock fastening system for secure mating.
Rated at 12A and 250VAC, this header operates over a temperature range of -55°C to 105°C. The insulation material has a UL94 V-2 flammability rating. The through-hole termination with solder tails provides reliable mechanical and electrical connections to the PCB.
This connector is suitable for appliance and industrial applications requiring a robust, polarized connection. The 4.60mm contact length ensures adequate insertion depth for reliable contact.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.56 | $1.56 |
| 10+ | $1.33 | $1.33 |
| 100+ | $1.13 | $1.13 |
| 500+ | $1.01 | $1.01 |
| 1,000+ | $0.96 | $0.96 |
| 5,000+ | $0.86 | $0.86 |
| 10,000+ | $0.82 | $0.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 350211-1 has 4 positions in a single row.
The pitch is 5.08mm (0.200 inches).
The current rating is 12A.
The voltage rating is 250VAC.
Through-hole mounting with solder termination.
-55°C to 105°C.
Yes, it is a shrouded - 4 wall design with a detent lock.
