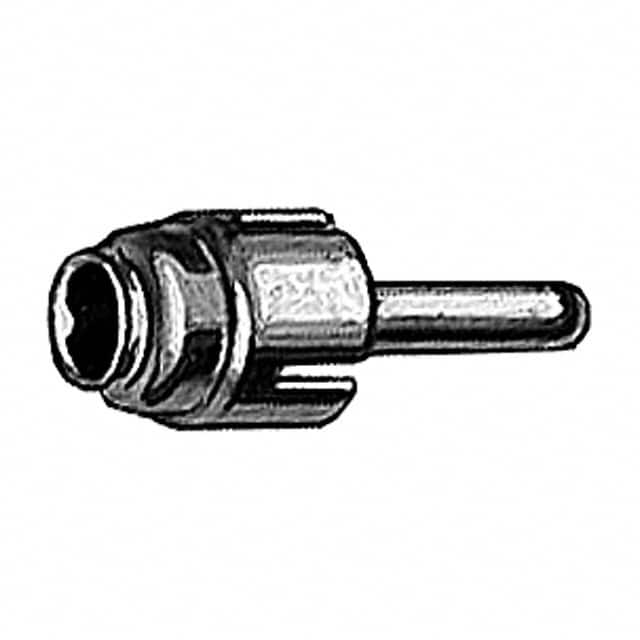

3501M The 3501M is a male Phono (RCA) plug with 2 conductors for mono audio signals. It features solder termination and free hanging (in-line) mounting.
Mfr Part #:

3501M

Available from 1 distributors
Mfr Name: Conxall/Switchcraft
Conxall/Switchcraft
The 3501M is a male Phono (RCA) plug with 2 conductors for mono audio signals. It features solder termination and free hanging (in-line) mounting.
✓ Total Stock: 48 pcs

3501M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
48 pcs
On Request
48 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3501M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actual Diameter
Connector Type
Gender
Industry Recognized Mating Diameter
Internal Switch(s)
Mounting Type
Number of Positions
Shielding
Signal Lines
Termination
Termination Style
View Similar Products (0)

3501M Description

Short technical summary and product information.

The 3501M is a male Phono (RCA) plug manufactured by Conxall/Switchcraft. It is designed for mono audio connections with 2 conductors and 2 contacts. The connector has an industry recognized mating diameter of 3.20mm inner and 9.00mm outer (RCA standard), with actual diameters of 3.18mm ID and 9.50mm OD.



This connector uses solder termination for secure wire attachment and is intended for free hanging (in-line) installation. It is unshielded and does not contain an internal switch. The plug is suitable for applications requiring a simple mono audio interconnect.



The connector is RoHS3 compliant (unverified), with MSL Level 1 and REACH unaffected status. It is categorized under Audio Connectors within the Barrel Connectors family.

3501M Quick Information

Product Type: Audio Connector
Canonical Name: Phono (RCA) Plug, Male, 2 Conductors, Mono, Solder, Free Hanging
Subcategory: Audio Connectors

3501M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3501M Features

  • Male Phono (RCA) plug for mono audio.
  • 2 conductors with solder termination.
  • Free hanging (in-line) mounting style.
  • Unshielded design for basic audio connections.
  • Industry standard 3.20mm ID / 9.00mm OD mating diameters.

3501M Applications

  • Used in consumer audio equipment for mono signal connections.
  • Ideal for RCA patch cables and interconnects.
  • Suitable for DIY audio projects requiring solder termination.
  • Common in home theater and stereo systems.

3501M FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 3501M have?

2 conductors and 2 contacts.

What is the mounting type?

Free hanging (in-line).

What is the connector type?

Phono (RCA) plug.

What is the gender?

Male.

What is the signal line configuration?

Mono.

What is the termination style?

Solder.

Is the connector shielded?

No, it is unshielded.
