| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

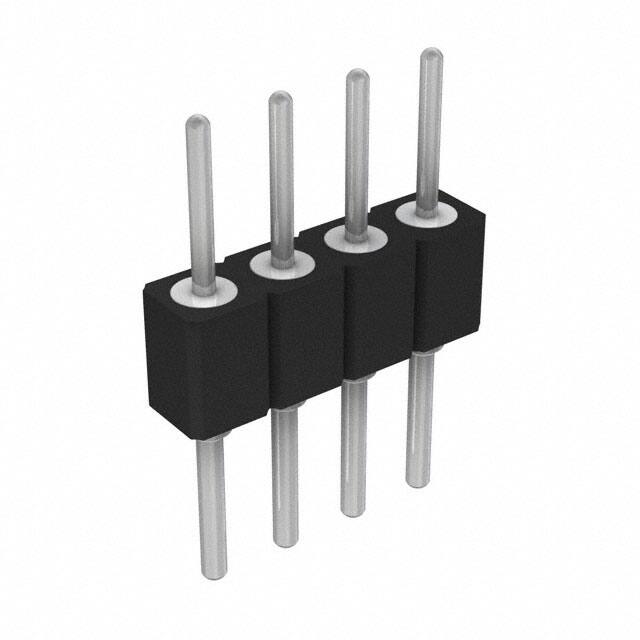

The Preci-Dip 350-80-104-00-024101 is a 4 position single row unshrouded male pin header designed for board-to-board applications. It features a 2.54mm (0.100") pitch and through hole mounting with solder termination. The connector uses brass contacts with a tin finish and a circular contact shape.
The insulator is made of glass filled PCT/polyester in black, rated UL94 V-0 for flammability. The header has a push-pull fastening type and an operating temperature range of -55°C to 125°C. It is rated for 3A current and 150VDC voltage.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.96 | $0.96 |
| 10+ | $0.82 | $0.82 |
| 25+ | $0.78 | $0.78 |
| 100+ | $0.73 | $0.73 |
| 250+ | $0.67 | $0.67 |
| 500+ | $0.60 | $0.60 |
| 1,000+ | $0.55 | $0.55 |
| 2,500+ | $0.51 | $0.51 |
| 5,000+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 4 positions in a single row.
The current rating is 3A.
The voltage rating is 150VDC.
Through hole mounting with solder termination.
-55°C to 125°C.
Glass filled PCT/polyester with UL94 V-0 rating.
