| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Cable Exit | |
| Cable Type | |
| Color | |
| Flammability | |
| Flammability Rating | |
| Hardware | |
| Insert Material | |
| Material | |
| Mounting Hardware | |
| Number of Positions | |
| Screw Material | |
| Screw Size | |
| Shell Material | |
| Shielding | |
| Temperature Rating |

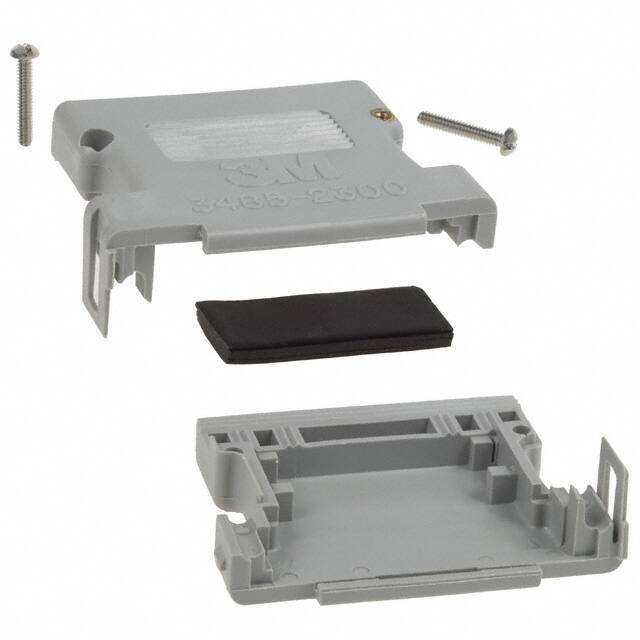

The 3M 3485-2300F is a two-piece plastic backshell designed for 25-position D-Sub connectors. It provides a 180° cable exit for flat cable applications and is constructed from gray glass-filled polyester (PBT) with a UL 94V-0 flammability rating. The shell includes brass inserts and two steel zinc screws (2-56 x 0.50 in) for assembly. Mounting hardware is specified in 3M specification sheet TS-0142.
This backshell is unshielded and suitable for use with 3M D-Sub connectors such as the 8225 and 8325 series. It offers an operating temperature range of -55°C to +105°C, making it appropriate for a variety of industrial and data communication environments. The lightweight plastic construction reduces overall system weight while providing mechanical protection for the connector pins.
Designed for flat cable termination, the 3485-2300F simplifies assembly and ensures reliable cable management. It is part of the 3485 series of junction shells from 3M, which cover a range of sizes from 9 to 37 positions.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.95 | $14.95 |
| 10+ | $12.70 | $12.70 |
| 25+ | $11.91 | $11.91 |
| 50+ | $11.34 | $11.34 |
| 100+ | $10.80 | $10.80 |
| 300+ | $9.99 | $9.99 |
| 500+ | $9.64 | $9.64 |
| 1,000+ | $9.18 | $9.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It supports 25 positions.
180° cable exit.
Flat cable.
No, it is unshielded.
Glass filled polyester (PBT).
-55°C to +105°C.
UL 94V-0.
