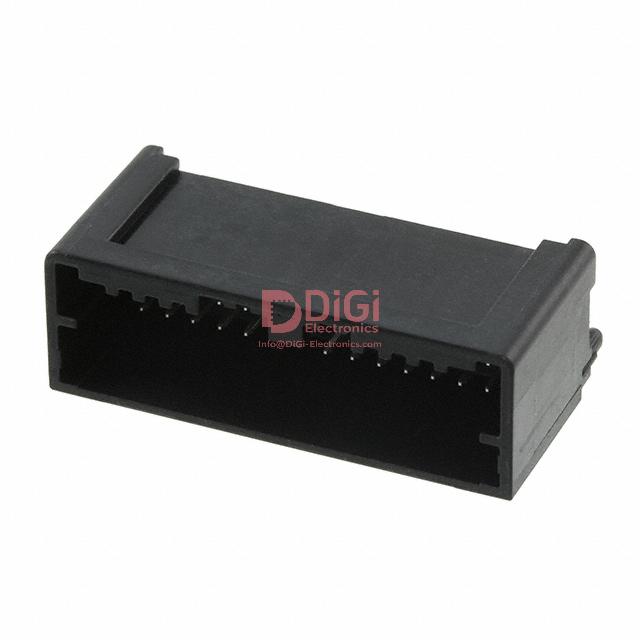

348250240 The Molex 348250240 is a connector header with 24 positions and a 2.00mm mating pitch. It features a through hole mounting type and a solder termination.
Mfr Part #:

348250240

Available from 2 distributors
Mfr Name: Molex
Molex
The Molex 348250240 is a connector header with 24 positions and a 2.00mm mating pitch. It features a through hole mounting type and a solder termination.
✓ Total Stock: 40,484 pcs
$ Price Range: $1.17

348250240 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
40,481 pcs
On Request
40481 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

348250240 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Length - Mating
Contact Length - Post
Contact Material
Contact Shape
Contact Type
Failure Rate
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
Pitch - Mating
Style
Termination
View Similar Products (0)

348250240 Description

Short technical summary and product information.

This Molex 348250240 is a vertical connector header from the Mini50 series. It offers 24 positions with a mating pitch of 0.079" (2.00mm) and is designed for board-to-cable/wire applications. The header features a through hole mounting type and a solder termination style, ensuring a secure connection.



Key mechanical specifications include a male pin contact type, a contact length of 5.55mm for mating and 2.87mm for the post, and an insulation height of 15.60mm. The contact material is brass with a tin surface treatment. The insulation is made of Syndiotactic Polystyrene (SPS), Glass Filled, and is black in color. The material has a UL94 V-0 flammability rating.



This component is classified as active and is suitable for automotive applications. It is provided in tray packaging. Environmental compliance includes RoHS3 compliance, MSL 1 (Unlimited), and REACH Unaffected status.

348250240 Quick Information

Product Type: Connector Header
Series: Mini50
Canonical Name: Molex 348250240 Connector Header, Through Hole, 24 Positions, 2.00mm Pitch
Subcategory: Headers

348250240 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

348250240 Estimated Pricing

Qty Low High
1+ $1.17 $1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

348250240 Features

  • 24 positions with 2.00mm mating pitch.
  • Through hole mounting for secure connections.
  • Male pin contacts with tin plating.
  • Automotive application suitability.
  • RoHS3 compliant and MSL 1 rated.

348250240 Applications

  • Ideal for automotive wiring harnesses.
  • Suitable for board-to-wire connections.
  • Used in compact electronic assemblies.
  • Reliable signal and power transmission.

348250240 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this connector?

2.00mm.

How many positions does it have?

24.

What is the mounting type?

Through hole.

What is the insulation material?

Syndiotactic Polystyrene (SPS), Glass Filled.

What is the flammability rating?

UL94 V-0.

What is the packaging?

Tray.

Is it shrouded?

Yes, shrouded with 4 walls.
