| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
139,000 pcs
|
139000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Cavity Diameter | |
| Compatible Insulation Diameter Range | |
| Connector Seal & Plug Type | |
| Contains Lubricant | |
| EU ELV | |
| Features | |
| For Use With | |
| Halogen Free | |
| Operating Temperature Max | |
| Operating Temperature Range | |
| Packaging Method | |
| Packaging Quantity | |
| Primary Product Color | |
| Primary Product Material | |
| Resistance to Hydrocarbons | |
| SVHC Present | |
| Shore A Hardness | |
| Tape & Reel | |
| Wire Gauge |

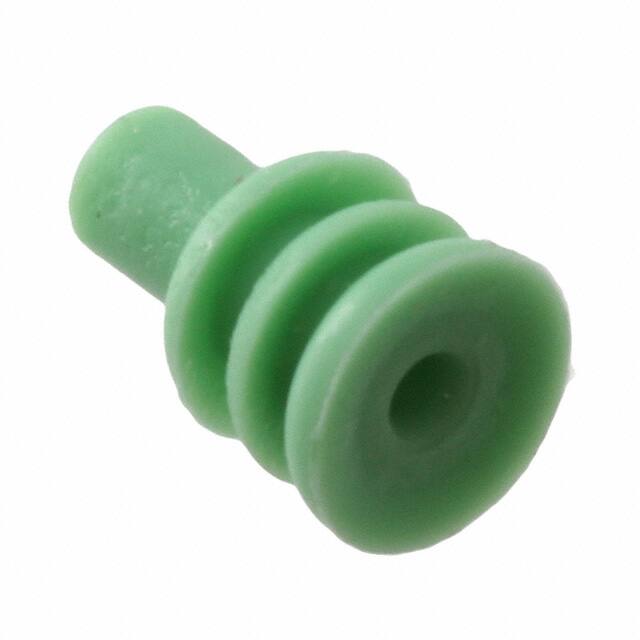

The TE Connectivity 347874-1 is a cable seal designed for use with EconoSeal series connectors. It is made from green silicone rubber, offering flexibility and a wide operating temperature range of -40 to 125°C. The seal has a cavity diameter of 1.1 mm and is compatible with wire insulation diameters from 1.6 to 2.4 mm, which corresponds to 20-15 AWG wire.
This seal features a Shore A hardness of 40 and contains lubricant to facilitate assembly. It exhibits poor resistance to hydrocarbons, so it is not recommended for environments with oil or fuel exposure. The part is packaged in bags of 10,000 units and is suitable for use in automotive, industrial, and other applications requiring environmental sealing at connector wire entry points.
Compliance includes EU RoHS Directive 2011/65/EU, EU ELV Directive 2000/53/EC, and low halogen content (Br, Cl, F, I < 900 ppm, BFR/CFR/PVC free). It is not applicable for solder processes. The 347874-1 is a reliable sealing solution for EconoSeal connectors, ensuring protection against moisture and contaminants.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
| 10+ | $0.12 | $0.12 |
| 25+ | $0.11 | $0.11 |
| 50+ | $0.11 | $0.11 |
| 100+ | $0.10 | $0.10 |
| 250+ | $0.09 | $0.09 |
| 500+ | $0.09 | $0.09 |
| 1,000+ | $0.09 | $0.09 |
| 2,500+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.1 mm.
1.6 – 2.4 mm.
-40 to 125°C.
Silicone Rubber.
Yes.
Yes, compliant with EU RoHS Directive 2011/65/EU.
10,000 per bag.
