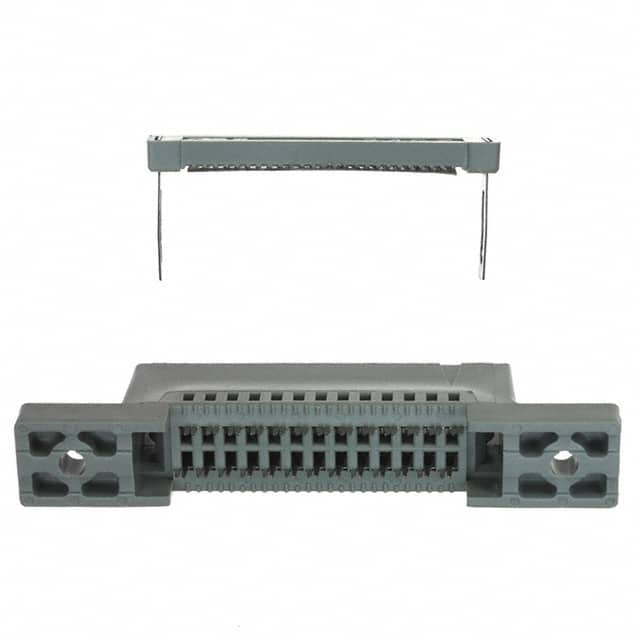

The 3M 3462-0000 is a 26-position dual female card edge connector from the 3000 Series, designed with .100" (2.54mm) pitch and drilled mounting flanges for panel mount applications. It accepts 26 and 28 AWG solid or stranded wires via IDC termination, providing a reliable connection to PC boards.
Electrical specifications include a current rating of 1 A, insulation resistance greater than 1×10⁹ Ω at 500 VDC, and withstanding voltage of 1000 VRMS at sea level. The operating temperature range is -55°C to 105°C.
Mechanically, the connector features bifurcated contacts with gold plating (30 μ″ gold over 100 μ″ nickel) for reliable performance. The insulation is glass-filled polyester (PBT) with UL 94V-0 flammability rating. Metal cover clips provide superior cover retention, and standard drilled mounting flanges simplify installation.
The connector is RoHS compliant and supports dual readout, with 26 total positions arranged in two rows of 13. The housing is gray.
26 positions arranged in two rows (13 per row).
2.54mm (0.100").
1 A.
Panel mount with flush mount flanges (unthreaded, 0.125" diameter).
-55°C to 105°C.
Gold plating: 30 μ″ gold over 100 μ″ nickel at the wiping area.
Yes, the datasheet states RoHS compliant.
