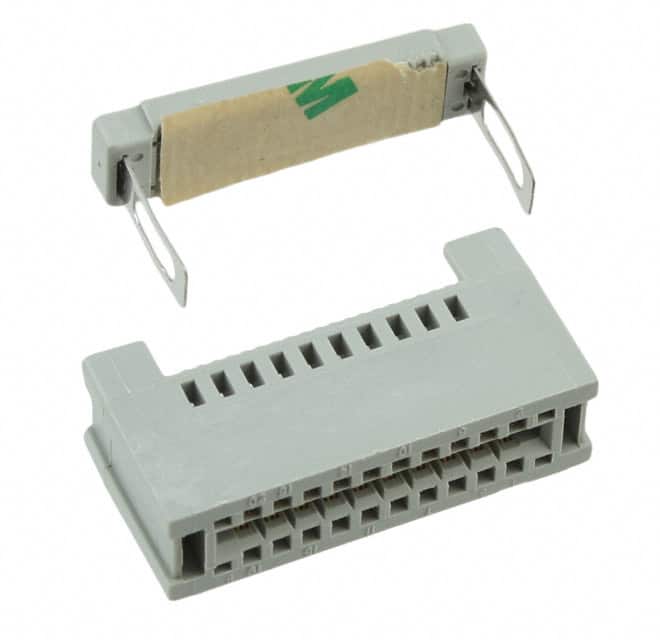

The 3M 3461-0001 is a 20 position dual female edgeboard connector from the Pak 100 Card-Edge 3000 Series. It is designed for free hanging (in-line) mounting and uses IDC termination for wire sizes 26 and 28 AWG solid and stranded. The connector has a pitch of 2.54mm (0.100 inch) and a card slot thickness range of 0.054 inch to 0.070 inch (1.37mm to 1.78mm).
Electrical specifications include a current rating of 1 A, insulation resistance greater than 1 x 10^9 ohms at 500 VDC, and a withstanding voltage of 1000 Vrms at sea level. The operating temperature range is -55°C to +105°C.
The housing is made of gray glass filled polyester (PBT) with a UL 94V-0 flammability rating. Contacts are made of copper alloy with a gold plating thickness of 30 microinches (0.76 micrometers) in the wiping area and a nickel underplating. The connector is RoHS compliant and reads out dual contacts for reliable connection with PC boards.
The 3461-0001 has 20 positions.
The pitch is 2.54mm (0.100 inch).
The current rating is 1 A.
It uses free hanging (in-line) mounting.
