| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,550 pcs
|
3550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Color | |
| Color | |
| For Use With | |
| Gender | |
| Lead Style | |
| Mating Tab Size | |
| Mounting Type | |
| Number of Positions | |
| Stacking Direction | |
| Style | |
| Terminal Size | |
| Terminal Tab Size | |
| Terminal Type |

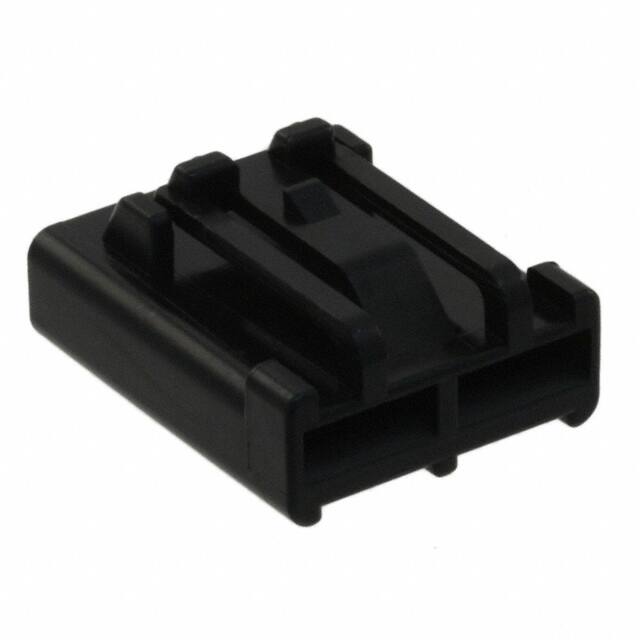

The TE Connectivity 346027-1 is a black, 2 position female receptacle housing designed for use with 0.250" x 0.032" (6.35mm x 0.81mm) quick disconnect tabs. This housing features a free hanging (in-line) mounting style and accepts quick connect, disconnect terminals. The housing allows side-to-side stacking for multi-circuit configurations.
This housing is part of TE's quick disconnect connector system, providing a reliable and insulated enclosure for tab receptacles. The body is black and is designed for female terminals. The terminal tab size accommodated is 0.250" (6.35mm).
The housing is intended for applications requiring a simple, non-sealed quick disconnect interface. Its free hanging design facilitates straightforward wire-to-wire or wire-to-component connections without additional mounting hardware. The side-to-side stacking feature enables compact multi-position assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.61 | $1.61 |
| 10+ | $1.36 | $1.36 |
| 25+ | $1.28 | $1.28 |
| 50+ | $1.22 | $1.22 |
| 100+ | $1.16 | $1.16 |
| 250+ | $1.09 | $1.09 |
| 500+ | $1.03 | $1.03 |
| 1,000+ | $0.99 | $0.99 |
| 2,500+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line).
2 positions.
0.250" x 0.032" (6.35mm x 0.81mm) quick connects.
Female, receptacle.
Quick connect, disconnect.
Black.
