Mfr Part #:

346-090-560-803

Name: 346-090-560-803
Brand: Edac
SKU: 346-090-560-803

Mfr Name: Edac

Description:

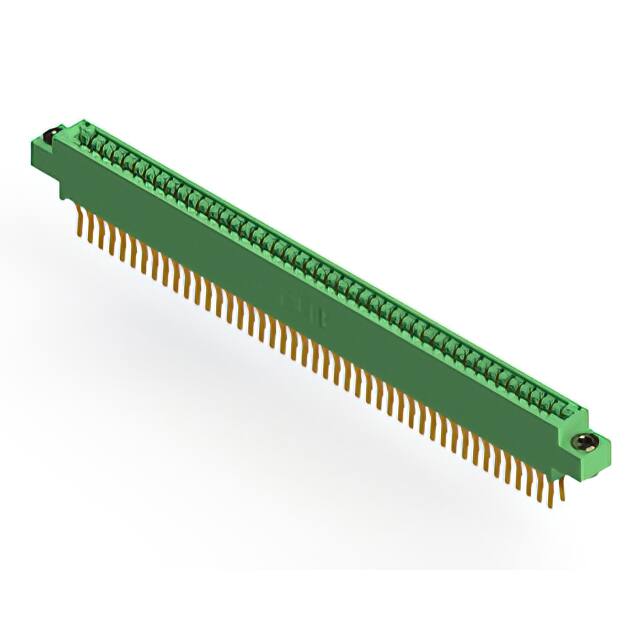

CONN EDGE DUAL FMALE 90POS 0.125

Stock on Request

346-090-560-803 Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 90POS 0.125

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

346-090-556-803

Edac

CONN EDGE DUAL FMALE 90POS 0.125

Category	Edgeboard Connectors
Manufacturer Name	Edac
Card Thickness	0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Gender	Female
Mounting Type	Board Edge, Straddle Mount
Number of Positions	45
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.125" (3.18mm)
Read Out	Dual
Termination	Solder
