| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

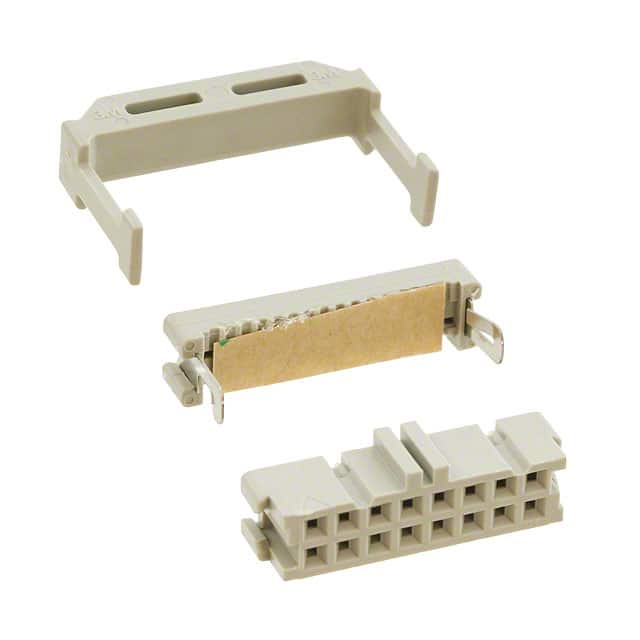

The 3M 3452-6616 is a 16-position IDC receptacle designed for mass termination of 26-28 AWG ribbon cable. It features two rows of female socket contacts with a 2.54mm pitch and row spacing, making it compatible with standard 0.100" header connectors. The contacts are gold-plated with a thickness of 30.0 microinches (0.76 microns) for reliable low-resistance connections. The connector housing is gray and is designed for free hanging (in-line) mounting, allowing flexible cable routing without a panel. Key features include feed-through design for daisy-chaining, a polarizing key to prevent misalignment, and built-in strain relief to protect the cable termination. The IDC termination method enables quick, solderless assembly by pressing the cable onto insulation displacement contacts. This connector is part of the 3M 3000 Series wiremount socket family and is suitable for internal wiring in electronic equipment, computer peripherals, and telecommunications systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.85 | $4.85 |
| 10+ | $4.12 | $4.12 |
| 25+ | $3.87 | $3.87 |
| 50+ | $3.68 | $3.68 |
| 100+ | $3.51 | $3.51 |
| 300+ | $3.24 | $3.24 |
| 600+ | $3.09 | $3.09 |
| 1,200+ | $2.94 | $2.94 |
| 2,700+ | $2.78 | $2.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
2.54mm (0.100 inches).
Free hanging (in-line).
26-28 AWG ribbon cable.
IDC (Insulation Displacement Connector).
Gold plating with 30.0µin (0.76µm) thickness.
Gray.
