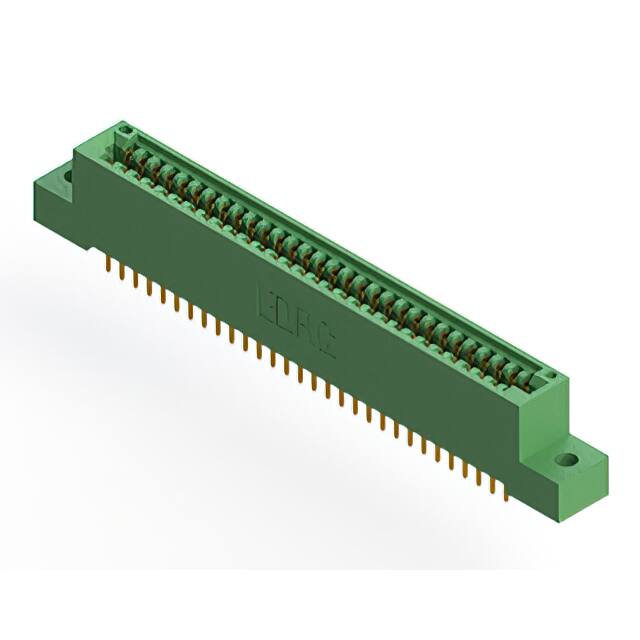

The EDAC 345-060-521-202 is a dual row female edgeboard connector from the 345 series, featuring 60 cantilever contacts arranged on a 0.100" (2.54mm) pitch with a row spacing of 0.200" (5.08mm). The connector accepts a non-specified dual edge card with thickness ranging from 0.054" to 0.070" (1.37mm to 1.78mm). Contacts are made of copper alloy with gold plating on the mating area and tin plating on the tails, over a nickel underplate.
Electrical ratings include a current rating of 3 amps per contact, maximum contact resistance of 10 milliohms, dielectric withstanding voltage of 1200 V AC rms at sea level, and minimum insulation resistance of 5000 megaohms. The operating temperature range is -40°C to +105°C. The insulator is molded from green UL94V-0 rated thermoplastic polyester.
This connector uses through hole mounting with solder termination and features flush mount, top opening, unthreaded flanges with 0.128" (3.25mm) diameter mounting holes. The tail length is 0.150" (3.81mm). Insertion force is 16 oz (4.45 N) maximum per contact pair, and withdrawal force is 1 oz (0.28 N) minimum per contact pair.
| Qty | Low | High |
|---|---|---|
| 25+ | $9.65 | $9.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 60 contacts arranged in two rows.
The contact pitch is 0.100" (2.54mm).
The current rating is 3 amps per contact.
The connector uses through hole mounting with solder termination.
The operating temperature range is -40°C to +105°C.
It accepts card thickness from 0.054" to 0.070" (1.37mm to 1.78mm).
Yes, the datasheet states it is RoHS compliant and UL certified.
