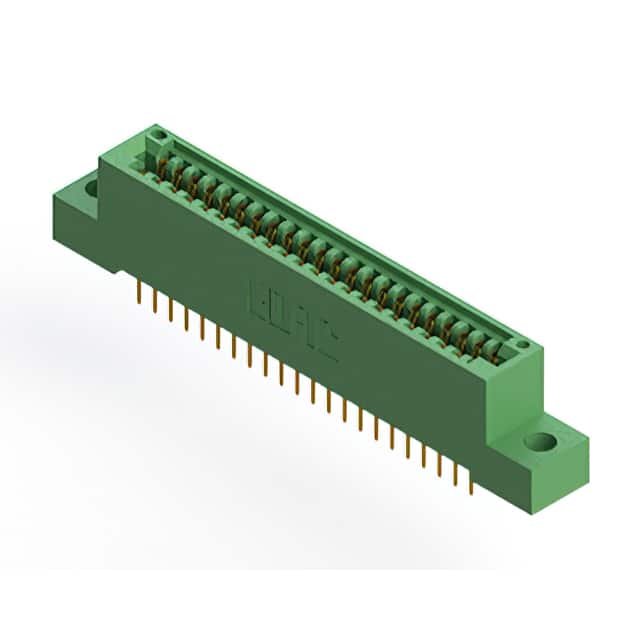

The EDAC 345-044-524-204 is a 44 position dual row female edgeboard connector from the 345 series. It features a 2.54mm (0.100") pitch and accepts a non-specified dual edge card with thickness ranging from 0.054" to 0.070" (1.37mm to 1.78mm). The connector uses cantilever contacts made of copper alloy with 10.0µin gold plating on the mating area and tin plating on the tails, with nickel underplating.
Electrical ratings include a current rating of 3 amps, maximum contact resistance of 10 milliohms, dielectric withstanding voltage of 1200 V AC rms between adjacent contacts, and minimum insulation resistance of 5000 megohms. The insertion force is 4.45 N (16 oz) maximum per contact pair, and withdrawal force is 0.28 N (1 oz) minimum per contact pair.
The insulator is green thermoplastic polyester rated UL 94V-0. The connector features flush mount, top opening, unthreaded flanges with 0.156" (3.96mm) diameter mounting holes. Operating temperature range is -40°C to +105°C. Termination is through hole solder.
| Qty | Low | High |
|---|---|---|
| 25+ | $8.46 | $8.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 44 positions arranged in 2 rows (22 per row).
The pitch is 2.54mm (0.100").
The current rating is 3 amps.
It uses through hole mounting with solder termination.
The operating temperature range is -40°C to +105°C.
Contacts are copper alloy with 10.0µin gold plating on the mating area.
It accepts card thickness from 0.054" to 0.070" (1.37mm to 1.78mm).
