| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
174 pcs
|
174 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

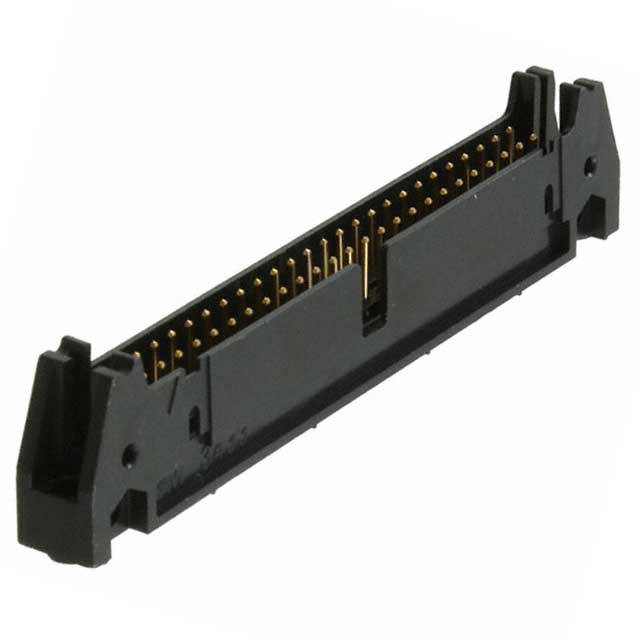

The 3M 3433-5003UG is a 50-position, 2-row, shrouded male pin header with a 2.54mm (0.100 inch) pitch and row spacing. It is designed for board-to-board or cable-to-board connections. The connector features a 4-wall shrouding for protection and alignment, with a push-pull fastening mechanism.
The contacts are made of copper alloy with a tin-lead plating (15.0µin thickness) and a square contact shape. The insulation is black polycyclohexylenedimethylene terephthalate (PCT) glass-filled material, rated UL94 V-0 for flammability.
The header is mounted via through-hole, right-angle orientation, making it suitable for applications where a low-profile connector is needed. It is rated for a current of 1.75A per contact and operates over a temperature range of -55°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 300+ | $3.41 | $3.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions in 2 rows.
2.54mm (0.100 inches).
1.75A per contact.
Through-hole, right-angle.
-55°C to 105°C.
Tin-lead with 15.0µin thickness.
UL94 V-0.
