| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
66 pcs
|
66 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector System | |
| Contact Material | |
| Contact Plating | |
| Current | |
| Failure Rate | |
| Number of Contacts | |
| Number of Rows | |
| Orientation | |
| Pin Length | |
| Pitch | |
| Voltage |

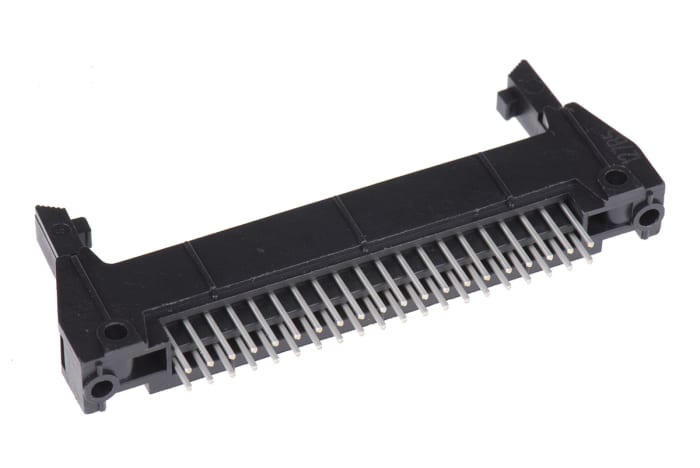

This 3M 3432-6302RB is a straight through-hole PCB header belonging to the 3000 series. It offers 40 contacts across two rows, with a standard pitch of 2.54mm. The connector system supports both board-to-board and wire-to-board connections.
Constructed with a copper alloy contact material and gold plating, this header is designed for reliability. It operates within a temperature range of -55°C to 105°C and has a voltage rating of 1kV AC. The mounting type is through hole, ensuring a secure connection to the PCB.
The header is fully shrouded, providing protection for the contacts. It is suitable for applications requiring a robust and dependable connection, such as in industrial, instrumentation, and medical markets.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the 3M 3432-6302RB PCB header is 2.54mm.
The 3M 3432-6302RB has 40 contacts.
The operating temperature range for this PCB header is -55°C to 105°C.
The voltage rating of the 3M 3432-6302RB is 1kV ac.
The 3M 3432-6302RB uses through hole mounting.
