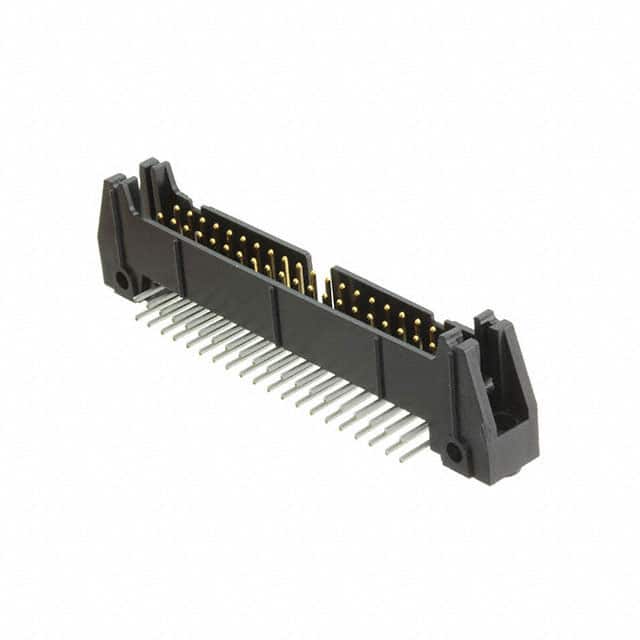

The 3M 3432-5002 is a 40 position, 2 row, 2.54mm pitch right angle through hole shrouded header from the 3000 series. It features a 4-wall shrouded design with a push-pull fastening type and includes a keying slot and mounting flange for secure board attachment.
This header is rated for 1.75A per contact and 1.0 kV, with gold plated copper alloy contacts (30.0µin gold). The insulation is black glass-filled PCT/Polyester with a UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C.
Designed for board-to-board or cable-to-board applications, the right angle orientation allows for low-profile connections parallel to the PCB. The through hole solder termination provides reliable mechanical and electrical connections.
The pitch is 2.54mm (0.100").
It has 40 positions arranged in 2 rows.
The current rating is 1.75A per contact.
The voltage rating is 1.0 kV.
It is a through hole, right angle mount header with solder termination.
The operating temperature range is -55°C to 105°C.
Yes, it is a shrouded header with a 4-wall design.
