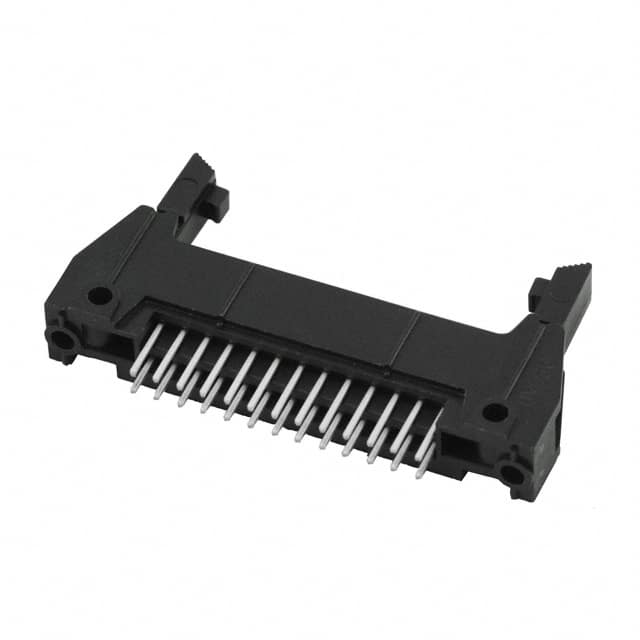

The 3M 3429-6302 is a 26-position shrouded header connector in a 2-row configuration with a 2.54mm pitch. It features male square pins made of copper alloy with a tin-lead finish. The insulator is black polybutylene terephthalate (PBT) with glass filling and meets UL94 V-0 flammability rating. The header is fully shrouded with 4 walls and includes a keying slot and mounting flange for secure alignment. The latch lock/eject hooks long fastening type provides reliable mating retention.
This connector supports board-to-board or cable applications and is rated for 1A per contact. The operating temperature range is -55°C to 105°C. The mated pin length is 2.84mm with an overall contact length of 16.56mm and insulation height of 17.27mm.
The 3429-6302 uses through hole solder termination and has a row spacing of 2.54mm. All 26 positions are loaded. It is suitable for industrial and electronic interconnection designs requiring a rugged, shrouded pin header.
The pitch is 2.54mm (0.100").
It has 26 positions in a 2-row configuration with all positions loaded.
It is through hole with solder termination.
The current rating is 1A per contact.
-55°C to 105°C.
