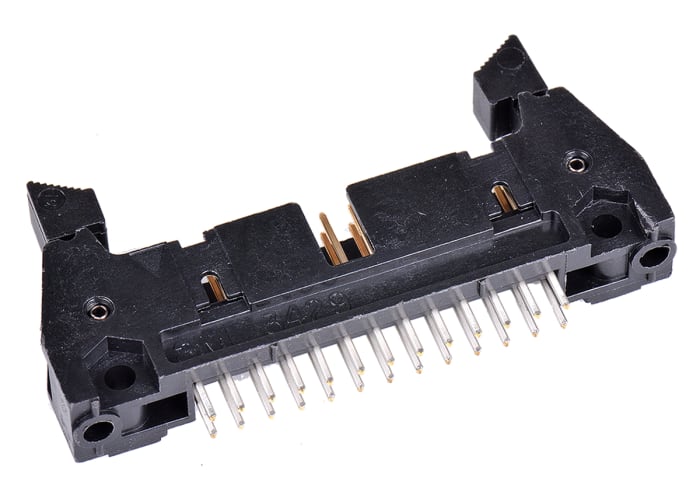

This 3M 3000 Series PCB header, part number 3429-6202RB, is designed for reliable board-to-board and wire-to-board connections. It offers 26 contacts arranged in two rows with a standard 2.54mm pitch. The header is fully shrouded for enhanced contact protection and features a straight orientation for through-hole mounting onto PCBs.
Key electrical specifications include a current rating of 1.75A and a voltage rating of 25V. The contacts are made from a copper alloy and plated with gold for optimal conductivity and durability. The operating temperature range for this component is from -55°C to 105°C.
The design incorporates features for secure mating and easy removal, including ejection latches with roll-pins for high vibration applications. It also supports center bump and military polarization methods. The through-hole mounting ensures a robust connection to the printed circuit board.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the 3M 3429-6202RB PCB header is 2.54 mm.
The 3M 3429-6202RB header has 26 contacts.
The operating temperature range for the 3M 3429-6202RB is -55°C to 105°C.
The current rating of the 3M 3429-6202RB PCB header is 1.75 A.
The voltage rating for the 3M 3429-6202RB is 25 V.
The 3M 3429-6202RB uses through-hole mounting.
