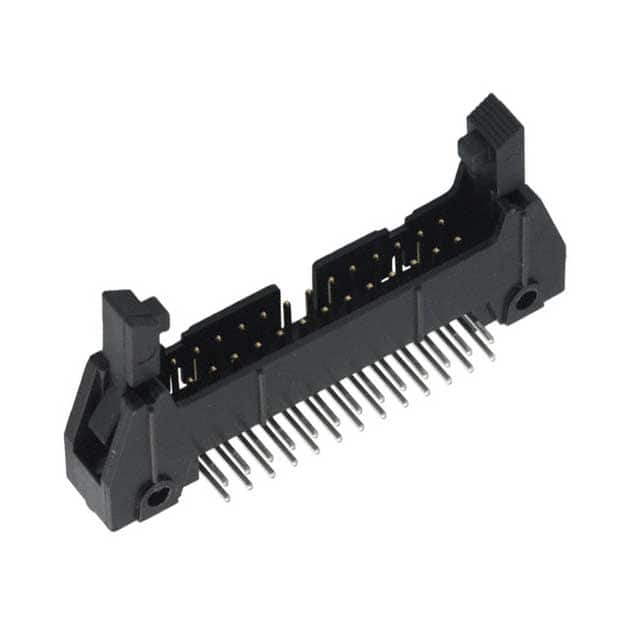

The 3M 3429-5302-UG is a through-hole, right-angle rectangular connector header designed for board-to-board or cable applications. It offers 26 positions arranged in 2 rows at a standard 0.100" (2.54mm) pitch with a matching row spacing of 0.100" (2.54mm). The connector features a shrouded 4-wall design with latch lock/eject hooks for secure mating.
Mating contacts are gold-plated with a thickness of 30.0µin (0.76µm), while the post contacts are finished with tin-lead. The contact material is copper alloy with a square contact shape. The insulator is made of black polycyclohexylenedimethylene terephthalate (PCT) with glass filling and carries a UL94 V-0 flammability rating.
This header is rated for a current of 1A per contact and operates over a temperature range of -55°C to 105°C. It includes features such as a keying slot and mounting flange for alignment and secure attachment. The mounting type is through-hole, right-angle, with solder termination and a contact post length of 2.84mm (0.112").
The 3429-5302 has 26 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with a matching row spacing of 2.54mm (0.100").
The current rating is 1A per contact.
The mounting type is through-hole, right-angle.
The operating temperature range is -55°C to 105°C.
The mating contacts have a gold finish (30.0µin), and the post contacts have a tin-lead finish.
