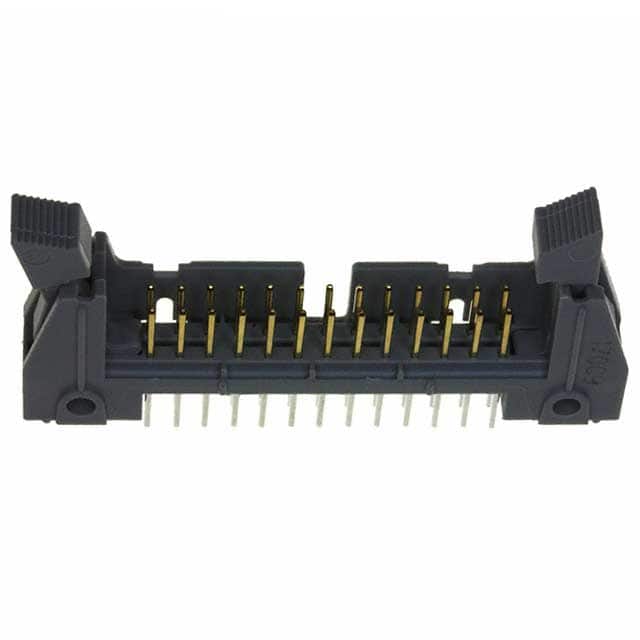

The 3M 3429-2202 is a 26-position, 2-row shrouded header designed for board-to-board or cable applications. It features a through hole mounting style with solder termination and a 2.54mm pitch. The header includes latch lock/eject hooks for secure mating and a keying slot with mounting flange for alignment.
Electrical rating is 1A with an operating temperature range of -55°C to 105°C. The insulator is black polycyclohexylenedimethylene terephthalate (PCT) with glass filling, rated UL94 V-0. Contacts are copper alloy with tin-lead plating (30µin).
This header is suitable for applications requiring a reliable, polarized connection. The 3-wall shrouding protects the pins and guides the mating connector.
The 3429-2202 has 26 positions, all loaded, in 2 rows.
The pitch (centerline spacing) is 2.54 mm (0.100").
The current rating is 1 A.
The mounting type is through hole with solder termination.
The operating temperature range is -55°C to 105°C.
The insulator is glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) with UL94 V-0 rating.
The contact finish is tin-lead with a thickness of 30.0 µin (0.76 µm).
