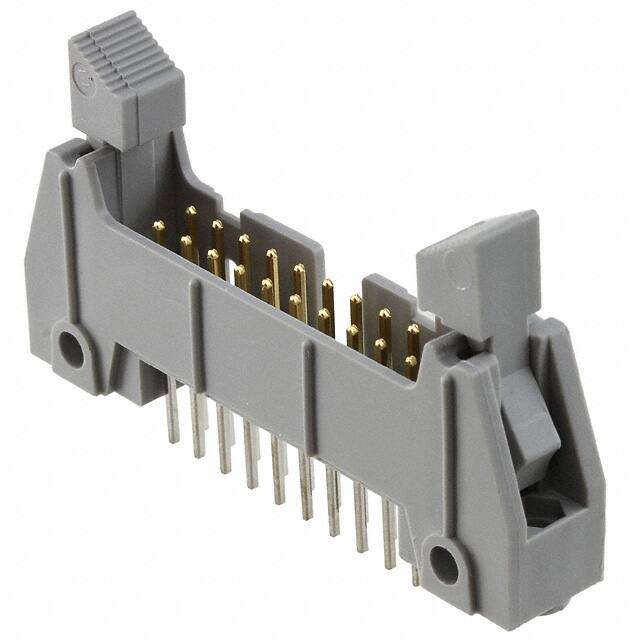

The 3M 3428-6202 is a 20-position, 2-row shrouded header with male pins, designed for board-to-board or cable connections. It features a 2.54mm (0.100") pitch and a through hole mounting style. The header is fully shrouded with a 4-wall design and includes latch lock/eject hooks for secure mating, along with a keying slot and mounting flange for alignment and stability.
The insulation is made of glass-filled polybutylene terephthalate (PBT) and polyester, colored black, with a flammability rating of UL94 V-0. The contacts are made of copper alloy with a tin-lead finish (30µin / 0.76µm thickness) and have a square shape. The overall contact length is 16.56mm (0.652"), with a mating pin length of 2.84mm (0.112"). The insulation height is 17.27mm (0.680").
Electrical rating is 1A continuous current. Operating temperature range is -55°C to 105°C. This header is suitable for a variety of applications requiring reliable, polarized connections in industrial, test, and measurement equipment.
20 positions.
2.54mm (0.100").
1A.
Through hole.
-55°C to 105°C.
Polybutylene Terephthalate (PBT), Polyester, Glass Filled.
Tin-Lead with 30µin (0.76µm) thickness.
