| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |

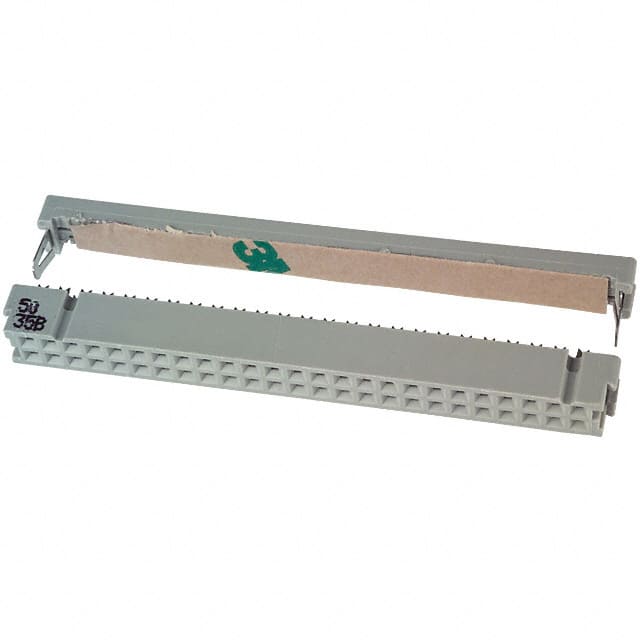

The 3M 3425-6000 is a 50 position IDC receptacle from the 3000 Series, designed for reliable wire-to-board connections in ribbon cable applications. It features female socket contacts with gold plating (30.0µin) for corrosion resistance and reliable signal integrity.
This connector uses IDC (Insulation Displacement Contact) termination for 26-30 AWG ribbon cable, enabling fast, solderless assembly. The 2.54mm (0.100") pitch and 2-row configuration are standard for mass-termination cable assemblies. The free hanging (in-line) mounting style allows flexible cable routing without panel cutouts.
The gray housing includes a feed-through feature for daisy-chaining multiple connectors on the same cable. Gold contact finish ensures low contact resistance and durability over repeated mating cycles. This part is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.85 | $10.85 |
| 10+ | $9.22 | $9.22 |
| 25+ | $8.64 | $8.64 |
| 50+ | $8.23 | $8.23 |
| 100+ | $7.83 | $7.83 |
| 300+ | $7.25 | $7.25 |
| 600+ | $6.90 | $6.90 |
| 1,200+ | $6.57 | $6.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle (female socket) connector.
It has 50 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
It uses IDC (Insulation Displacement Contact) termination for ribbon cable.
It accepts 26-30 AWG ribbon cable.
The contacts are gold plated with a thickness of 30.0µin (0.76µm).
It is listed as RoHS3 Compliant, though this is unverified.
