| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
139 pcs
|
139 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Type | |
| China RoHS | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| ELV | |
| Government Qualified | |
| Halogen Free | |
| Heavy Duty | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Holes | |
| Operating Temperature | |
| Packaging Method | |
| Packaging Quantity | |
| Sealable | |
| Stud | |
| Stud Diameter | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Tongue Thickness | |
| Voltage - Max | |
| Width | |
| Wire Gauge | |
| Wire Insulation Diameter (Max) | |
| Wire Insulation Diameter Range | |
| Wire size |

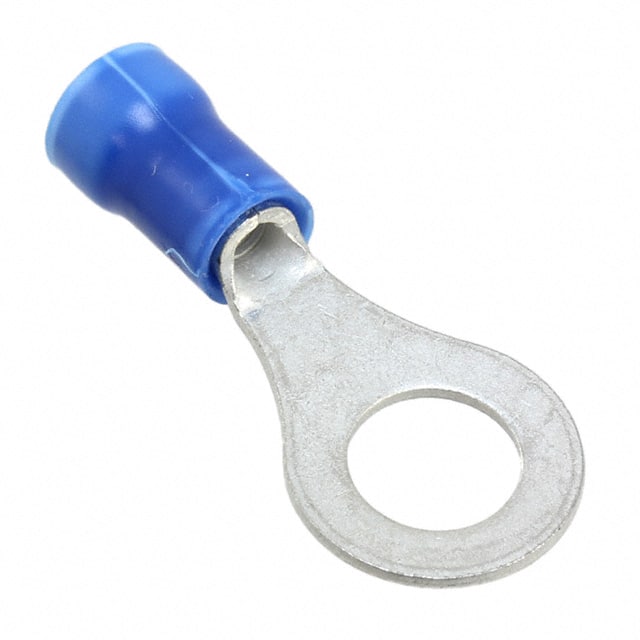

The TE Connectivity 342145-1 is a PLASTI-GRIP ring tongue terminal designed for 16-14 AWG wire (1-2.5 mm²). It features an M6 stud size with a stud diameter of 6.7 mm. The terminal is insulated with a blue nylon sleeve and has a tin-plated copper contact for reliable conductivity. Rated for 600V maximum voltage and operating temperature up to 105°C, it is suitable for a wide range of electrical applications.
The terminal uses a closed barrel crimp design and is free hanging (in-line) mountable. It is not sealable and not heavy duty. Packaging is loose piece with 100 pieces per pack.
Compliance includes RoHS, REACH, ELV, and China RoHS. The terminal is halogen-free not low halogen. It is not government qualified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
| 10+ | $0.35 | $0.35 |
| 25+ | $0.33 | $0.33 |
| 50+ | $0.31 | $0.31 |
| 100+ | $0.30 | $0.30 |
| 250+ | $0.28 | $0.28 |
| 500+ | $0.26 | $0.26 |
| 1,000+ | $0.25 | $0.25 |
| 3,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 600 V.
Free Hanging (In-Line) mounting.
It accepts 16-14 AWG wire (1-2.5 mm²).
It fits an M6 stud with a stud diameter of 6.7 mm.
Yes, it is insulated with a blue nylon sleeve.
The operating temperature is up to 105 °C.
Packaging quantity is 100 pieces per pack, loose piece.
