| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
116 pcs
|
116 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Insulation | |
| Insulation Diameter | |
| Lead Style | |
| Length | |
| Pin Diameter | |
| Termination | |
| Termination Style | |
| Wire Gauge |

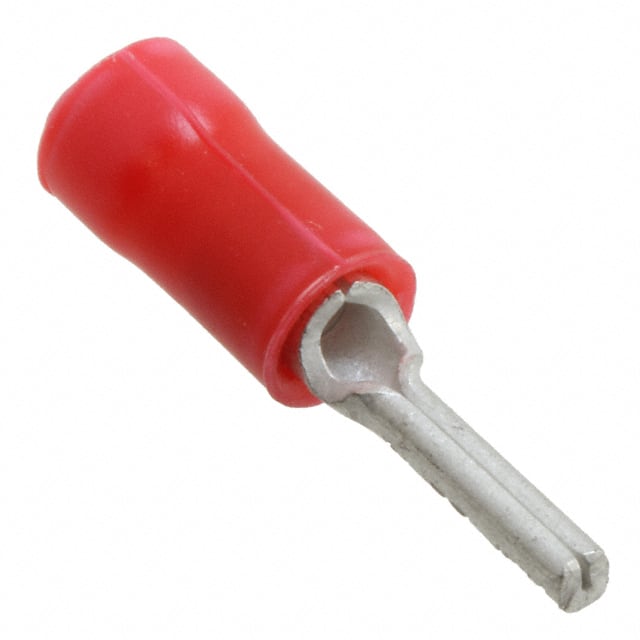

The TE Connectivity 342126-1 is a crimp-style wire pin terminal designed for reliable wire-to-board or wire-to-wire connections. It accepts 16 to 22 AWG wire and features a circular pin diameter of 0.071" (1.80mm). The terminal is insulated with a red color-coded housing, and the insulation diameter range is 0.106" to 0.142" (2.69mm to 3.61mm).
The serrated termination design enhances grip on the conductor, ensuring a stable electrical and mechanical connection after crimping. With an overall length of 20.57mm (0.810"), this terminal is suitable for applications requiring a compact, insulated pin connector.
This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is commonly used in automotive, industrial, and consumer electronics where secure wire termination is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.40 | $0.40 |
| 25+ | $0.38 | $0.38 |
| 50+ | $0.36 | $0.36 |
| 100+ | $0.34 | $0.34 |
| 250+ | $0.32 | $0.32 |
| 500+ | $0.31 | $0.31 |
| 1,000+ | $0.29 | $0.29 |
| 3,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 16 to 22 AWG wire.
The pin diameter is 0.071" (1.80mm), circular.
Yes, it is insulated with a red color-coded housing.
The length is 20.57mm (0.810").
It uses a crimp termination.
Yes, it features a serrated termination for improved grip.
