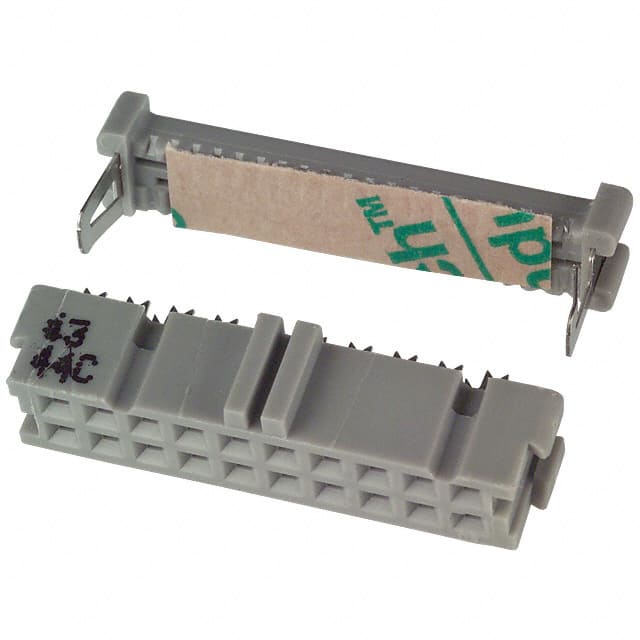

3421-6600 The 3421-6600 is a 20 position, 2-row IDC receptacle from 3M with gold contacts. It features a 2.54mm pitch and is designed for 26-28 AWG ribbon cable, free hanging mounting.
Mfr Part #:

3421-6600

Available from 1 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
The 3421-6600 is a 20 position, 2-row IDC receptacle from 3M with gold contacts. It features a 2.54mm pitch and is designed for 26-28 AWG ribbon cable, free hanging mounting.
✓ Total Stock: 51 pcs
$ Price Range: $2.72 - $4.76

3421-6600 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
51 pcs
On Request
51 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3421-6600 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Row Spacing
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

3421-6600 Description

Short technical summary and product information.

The 3M 3421-6600 is a rectangular connector receptacle designed for IDC termination to 26-28 AWG ribbon cable. It features 20 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing. The contact type is female socket with gold finish, 30µin thickness. This connector is free hanging (in-line) and comes with a gray color. It includes feed through and polarizing key features. The connector is suitable for use in ribbon cable applications requiring a reliable, compact connection.

3421-6600 Quick Information

Product Type: IDC Receptacle
Series: 3421
Canonical Name: 3M 3421-6600 - 20 Position IDC Receptacle, Free Hanging, 2.54mm Pitch
Subcategory: IDC Connector

3421-6600 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

3421-6600 Estimated Pricing

Qty Low High
1+ $4.76 $4.76
10+ $4.04 $4.04
25+ $3.79 $3.79
50+ $3.61 $3.61
100+ $3.44 $3.44
300+ $3.18 $3.18
600+ $3.03 $3.03
1,200+ $2.88 $2.88
2,700+ $2.72 $2.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

3421-6600 Features

  • 20 positions in 2 rows with 2.54mm pitch.
  • Gold plated female socket contacts, 30µin thick.
  • IDC termination for 26-28 AWG ribbon cable.
  • Free hanging (in-line) mounting style.
  • Includes polarizing key and feed through design.

3421-6600 Applications

  • Designed for 26-28 AWG ribbon cable.
  • Suitable for feed through wiring applications.
  • Used in free hanging in-line connector setups.

3421-6600 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 3421-6600 have?

20 positions.

What is the pitch of the 3421-6600?

2.54mm (0.100").

What mounting type does the 3421-6600 use?

Free hanging (in-line).

What is the contact finish on the 3421-6600?

Gold, 30µin thick.

What wire gauge is compatible with the 3421-6600?

26-28 AWG, stranded or solid.

What termination method does the 3421-6600 use?

IDC (Insulation Displacement Connection).

What features does the 3421-6600 include?

Feed through and polarizing key.
