| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | 2001 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Type |

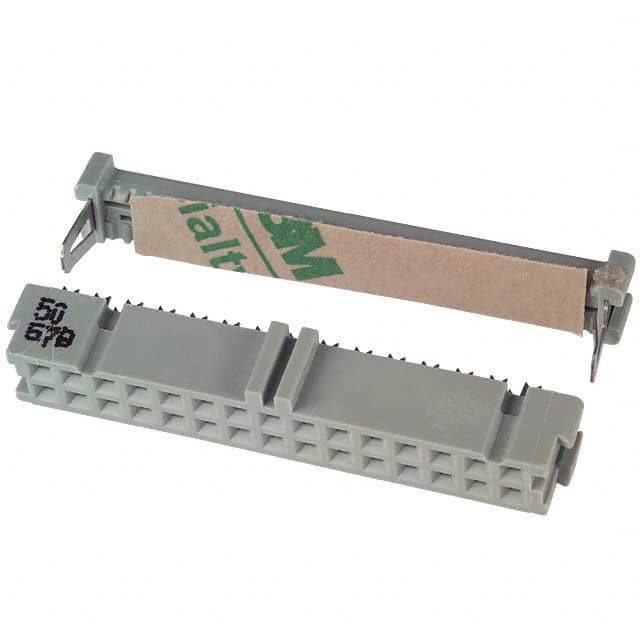

The 3M 3419-6600 is a 30-position IDC receptacle designed for terminating 26-28 AWG ribbon cable. It features a 2.54mm pitch, two rows, and female socket contacts with gold plating (30.0µin) for reliable signal transmission.
Rated for 1A per contact and 350V working voltage, the connector is constructed with a gray PBT, glass, and polyester housing rated UL94 V-0. It operates over a temperature range of -55°C to 105°C.
The right-angle orientation and feed-through design with polarizing key simplify cable assembly. The IDC termination style allows for mass termination without wire stripping, making it suitable for high-density interconnect applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.81 | $6.81 |
| 10+ | $5.79 | $5.79 |
| 25+ | $5.42 | $5.42 |
| 50+ | $5.16 | $5.16 |
| 100+ | $4.92 | $4.92 |
| 300+ | $4.55 | $4.55 |
| 600+ | $4.33 | $4.33 |
| 1,200+ | $4.13 | $4.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 30 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
It is rated for 1A per contact and 350V working voltage.
It is designed for free hanging (in-line) cable mount applications.
