| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

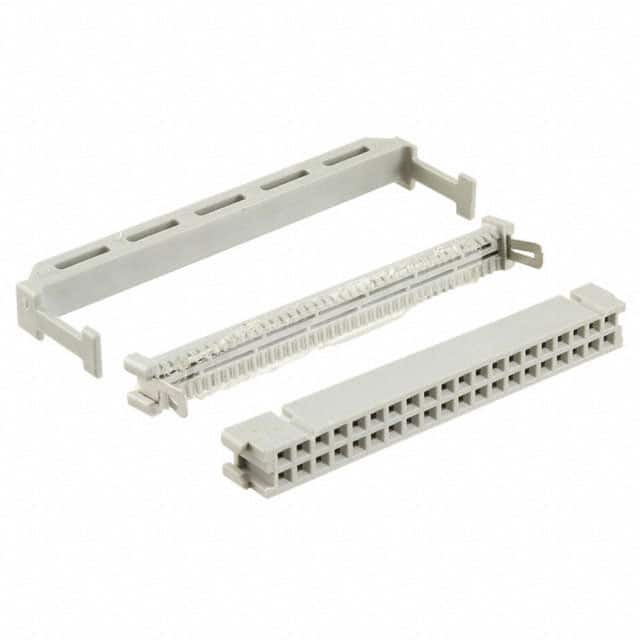

The 3M 3417-6040 is a 40 position IDC (Insulation Displacement Connector) receptacle designed for terminating 26-28 AWG ribbon cable. It features a 2-row configuration with a 2.54mm (0.100") pitch and 2.54mm row spacing, making it compatible with standard 0.100" header strips.
Contacts are female sockets with 30.0µin (0.76µm) gold plating, ensuring reliable low-resistance connections in repeated mating cycles. The connector is free hanging (in-line) and includes feed through capability and strain relief for robust cable management.
This connector is suitable for internal wiring applications where a compact, mass-termination interconnect is required. The IDC termination method allows for quick assembly without stripping or soldering wires, reducing labor costs in high-volume production.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.47 | $9.47 |
| 10+ | $8.04 | $8.04 |
| 300+ | $6.33 | $6.33 |
| 600+ | $6.03 | $6.03 |
| 1,200+ | $5.74 | $5.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle connector with female socket contacts.
It has 40 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
It accepts 26-28 AWG ribbon cable.
It is free hanging (in-line) with IDC termination.
The contacts have a gold finish with 30.0µin (0.76µm) thickness.
