| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Wire Insulation Diameter (Max) | |
| Barrel Type | |
| China RoHS 2 | |
| Color | |
| Contact Finish | |
| Contact Material | |
| ELV | |
| Features | |
| Halogen Free | |
| Heavy Duty | |
| Insulation | |
| Insulation Type | |
| Length | |
| Mounting Type | |
| Number of Holes | |
| Operating Temperature Range | |
| Overall Product Length | |
| Packaging Method | |
| Packaging Quantity | |
| Ring & Spade Terminal Type | |
| SVHC Present | |
| Stud | |
| Stud Size | |
| Terminal Angle | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Tongue Thickness | |
| Voltage - Max | |
| Width | |
| Wire Gauge | |
| Wire Size (AWG) | |
| Wire Size (CMA) | |
| Wire Size (mm²) |

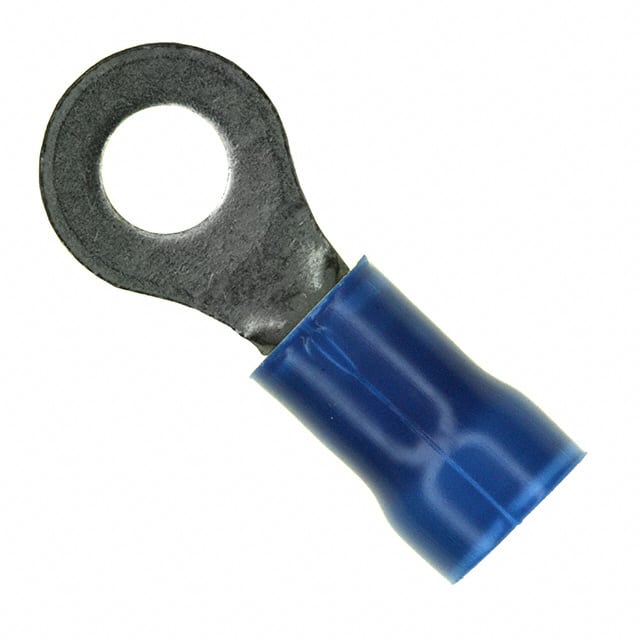

The TE Connectivity 34160 is a PLASTI-GRIP ring tongue terminal designed for 14-16 AWG wire (1.04-2.62 mm²). It features a #8 (M4) stud size and a crimp termination with a closed barrel. The contact is made of tin plated copper and the terminal is partially insulated with a blue color. The maximum voltage rating is 600V and the operating temperature range is up to 105°C.
This terminal has a serrated termination for a secure connection and an overall length of 22.12 mm with a tongue thickness of 0.79 mm. It is a free hanging (in-line) mounting type and accepts a maximum wire insulation diameter of 4.9 mm. The terminal angle is 180° with one hole.
Packaged in loose piece form, each package contains 1000 pieces. The component is compliant with EU RoHS, EU ELV, and does not contain REACH SVHC. It is not low halogen. Suitable for power and signal wiring applications where a reliable ring connection is required.
The maximum voltage rating is 600V.
Free hanging (in-line) mounting.
It accepts 14-16 AWG wire (1.04-2.62 mm², 2050-5180 CMA).
The stud size is #8 (M4).
The maximum operating temperature is 105°C.
Yes, it is EU RoHS Directive 2011/65/EU compliant.
Packaged in quantities of 1000 pieces, loose piece.
