| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating Underplating | |
| Contact Plating Wiping Area | |
| Current Rating | |
| Flammability Rating | |
| Flange Feature | |
| Gender | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style | |
| Wire Accommodation | |
| Withstanding Voltage |

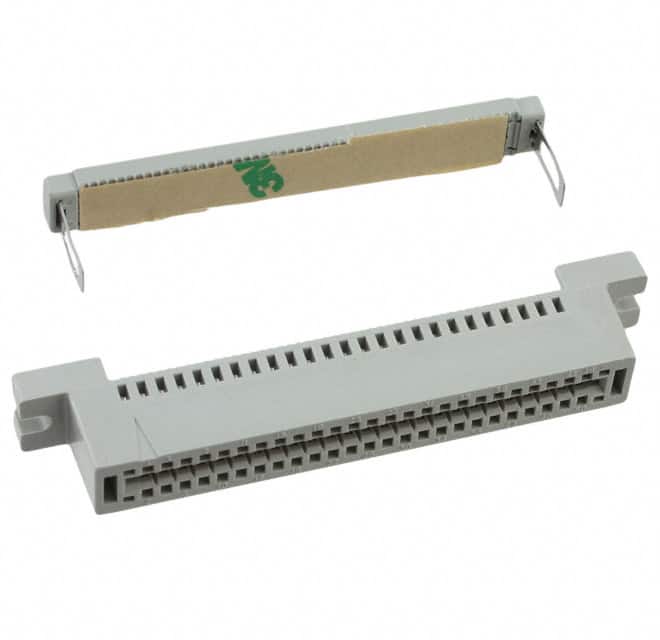

The 3M 3415-0002 is a female card edge connector from the 3000 Series, designed for reliable interconnection with PC boards. It has 50 positions in a dual readout configuration with a 0.100" (2.54mm) pitch. Termination is via IDC for 26 to 28 AWG solid or stranded wire. The connector is panel mount with flush mount slotted flanges and a top opening, unthreaded mounting hole of 0.125" (3.18mm) diameter.
The insulator is gray glass filled polyester (PBT) with a UL 94V-0 flammability rating. Contacts are copper alloy with 30 μ″ (0.76 μm) gold plating in the wiping area over 100 μ″ (2.54 μm) nickel underplating. Electrical ratings include 1 A current, >1 × 10^9 Ω insulation resistance at 500 VDC, and 1000 Vrms withstanding voltage at sea level. Operating temperature range is -55°C to +105°C. The connector is RoHS3 compliant.
It has 50 positions arranged in 2 rows.
0.100" (2.54mm) pitch.
1 A per contact.
Panel mount with slotted flanges (flush mount, top opening, unthreaded 0.125" dia hole).
-55°C to +105°C.
Yes, RoHS3 compliant.
