| Category | |
| Manufacturer Name | |
| Bore Diameter | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Cross Section | |
| Wire Gauge | |
| Wire Gauge (AWG) |

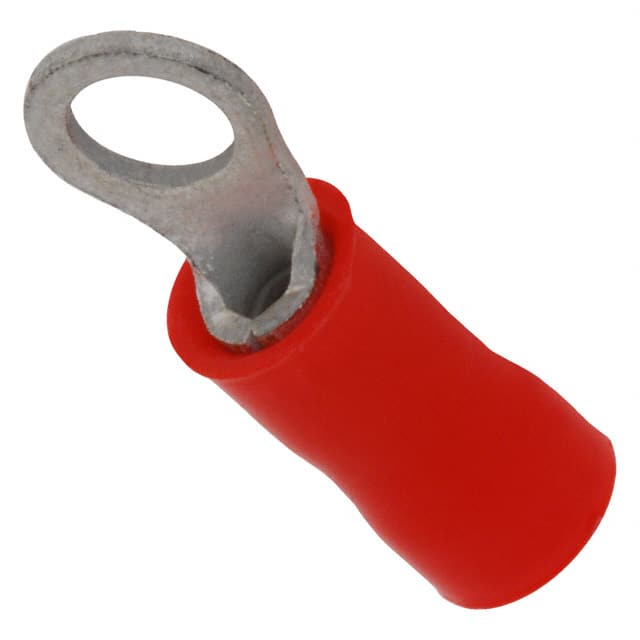

TE Connectivity 34142 is a circular ring terminal designed for 16-22 AWG (0.3 to 1.42 mm²) wire with a #6 stud size. The terminal is insulated with a red color coding indicating the wire range. It uses crimp termination and has a serrated inner barrel for improved wire retention and electrical conductivity.
The contact is made of copper with a tin finish, providing good corrosion resistance. The terminal is free hanging (in-line) mounting type. Dimensions: length 17.37 mm, width 5.54 mm, thickness 0.79 mm, bore diameter 3.68 mm (compatible with M3.5 stud).
This part is suitable for a variety of electrical connections requiring a reliable ring terminal. RoHS compliance is indicated but unverified. The datasheet extract notes the part as legacy/discontinued.
16-22 AWG (0.3 to 1.42 mm²).
#6 stud (bore diameter 3.68 mm, compatible with M3.5).
Yes, it is insulated.
Crimp termination.
Copper contact with tin finish.
Red.
Yes, it features serrated termination.
