| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |

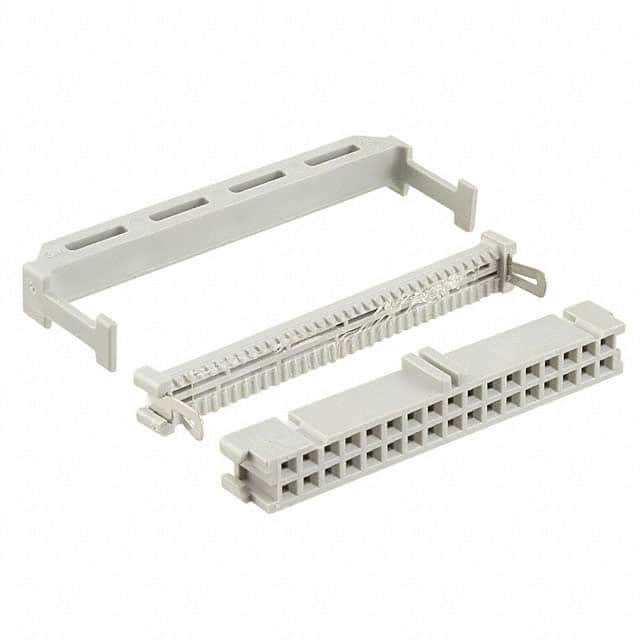

The 3M 3414-6634 is a 34-position IDC (Insulation Displacement Connector) receptacle designed for use with 26-28 AWG ribbon cable. It features a 2.54mm (0.100") pitch and 2 rows of female socket contacts with gold plating (30µin) for reliable electrical connections.
This connector utilizes a free hanging (in-line) mounting style, making it suitable for cable-to-board or cable-to-cable applications where a panel mount is not required. The IDC termination allows for quick and efficient assembly without stripping the wire insulation.
Additional features include a polarizing key to ensure correct orientation, a strain relief to protect the cable from mechanical stress, and a feed-through design that allows daisy-chaining of connectors. The housing is gray in color and manufactured by 3M, a leading provider of interconnect solutions.
This part is commonly used in internal wiring of computers, peripherals, and industrial control systems where reliable signal transmission is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.23 | $8.23 |
| 10+ | $6.99 | $6.99 |
| 25+ | $6.55 | $6.55 |
| 50+ | $6.24 | $6.24 |
| 100+ | $5.94 | $5.94 |
| 300+ | $5.50 | $5.50 |
| 600+ | $5.24 | $5.24 |
| 1,200+ | $4.99 | $4.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 34 positions across 2 rows.
The pitch is 2.54mm (0.100").
It is free hanging (in-line).
IDC (Insulation Displacement Connector).
26-28 AWG ribbon cable.
Gold, 30µin (0.76µm).
Feed through, polarizing key, and strain relief.
