| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

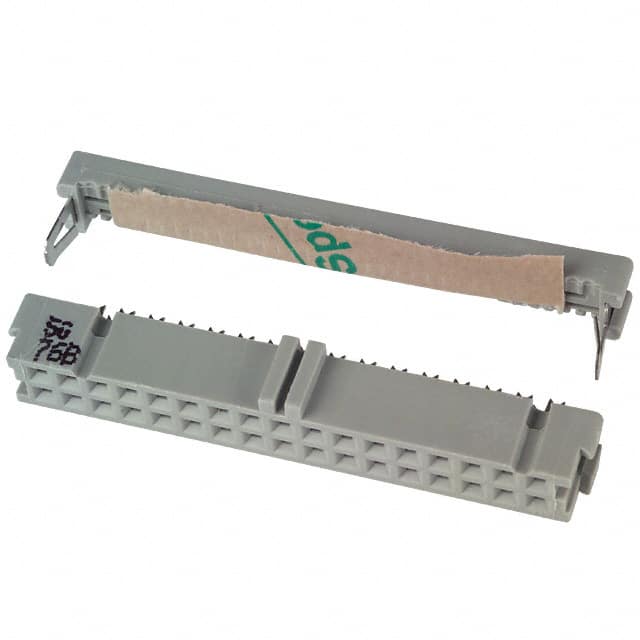

This 3M 3414-6600 is a 34-position IDC receptacle designed for use with 26-28 AWG ribbon cable. It features a 2.54mm (0.100") pitch and 2 rows with 0.100" row spacing, making it suitable for standard ribbon cable connections. The connector offers feed through and polarizing key features for alignment and retention. Contacts are gold plated with 30µin thickness for reliable signal integrity. Termination is via insulation displacement (IDC) for quick and reliable wire attachment without stripping. The housing is gray and designed for free hanging (in-line) mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.65 | $7.65 |
| 10+ | $6.50 | $6.50 |
| 25+ | $6.09 | $6.09 |
| 50+ | $5.80 | $5.80 |
| 240+ | $5.19 | $5.19 |
| 480+ | $4.95 | $4.95 |
| 720+ | $4.81 | $4.81 |
| 1,200+ | $4.64 | $4.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions.
2.54mm (0.100 inch).
Free hanging (in-line).
IDC (Insulation Displacement Connection).
26-28 AWG, stranded or solid.
Gold, 30µin thickness.
2 rows with 0.100 inch spacing.
