| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Inside Diameter | |
| Features | |
| Government Qualified | |
| Insulated | |
| Insulation | |
| Material Thickness | |
| Military Category | |
| Number of Serrations | |
| Number of Wire Entries | |
| Operating Temperature Max | |
| Outside Diameter | |
| Overall Length | |
| Packaging Method | |
| Packaging Quantity | |
| Plating Material | |
| Plating Thickness | |
| Sealed | |
| Serrated | |
| Splice Material | |
| Splice Type | |
| Terminal Type | |
| Termination | |
| Weight per Piece | |
| Wire Gauge | |
| Wire size | |
| Wire/Cable Composition |

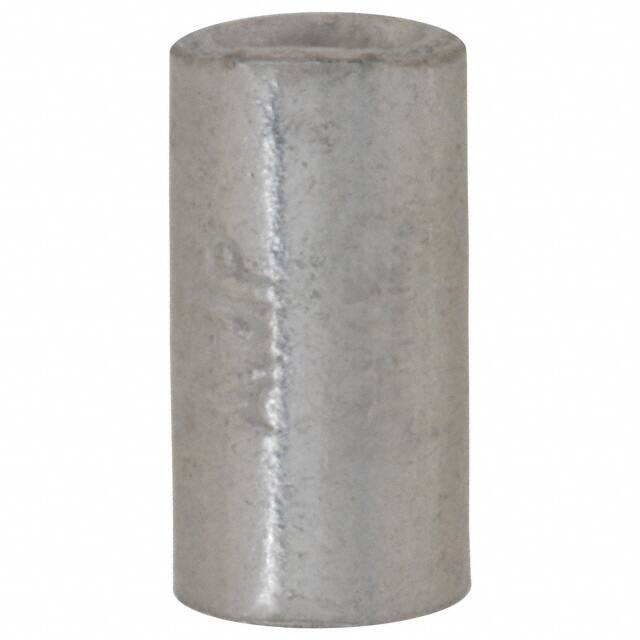

The TE Connectivity SOLISTRAND 34137 is a non-insulated parallel wire splice designed for reliable inline splicing of two wires. It accommodates wire sizes from 16 to 14 AWG (1.25 to 2 mm²) with a circular mil area range of 2050-5180 CMA. The splice features a barrel inside diameter of 2.16 mm and an overall length of 7.65 mm (0.301 in), with an outside diameter of 4.19 mm. Material thickness is 0.84 mm. Constructed from copper with a tin plating of 100 microinches, the splice includes a serrated mating area with 8 serrations to enhance grip and conductivity. The brazed seam construction provides mechanical strength. This component is designed for crimp termination and supports both solid and stranded wire configurations. The splice is unsealed and non-insulated, with a maximum operating temperature of 170°C. Packaging is loose piece in quantities of 1000 per bag. The product is RoHS compliant per the manufacturer's statement. It is part of the SOLISTRAND series from TE Connectivity, known for durable terminal and splice solutions.
16-14 AWG (1.25-2 mm², 2050-5180 CMA).
Non-insulated parallel splice with inline individual openings for crimp termination.
Copper body with tin plating thickness of 100 µin.
170°C.
Loose piece packaging with 1000 pieces per bag.
Yes, the datasheet states it is always EU RoHS/ELV compliant.
