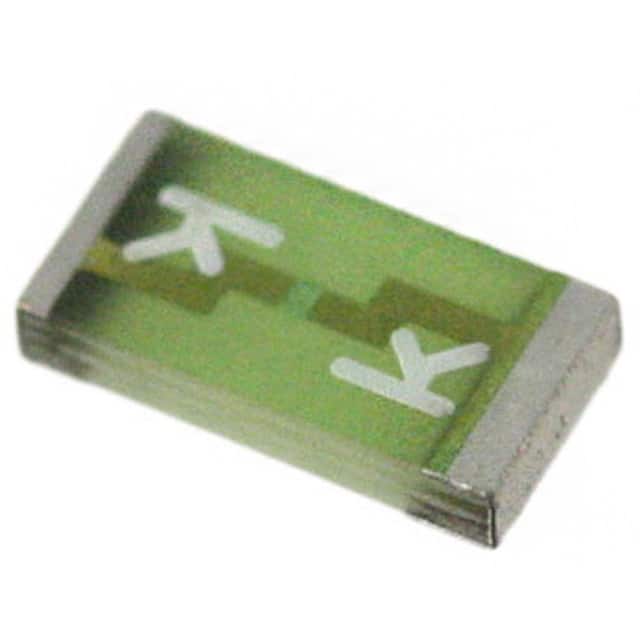

3413.0219.22 Surface mount fast-acting fuse rated 2A at 32VAC and 63VDC, in a 1206 package. 63A breaking capacity, quick-acting F characteristic.
Mfr Part #:

3413.0219.22

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Surface mount fast-acting fuse rated 2A at 32VAC and 63VDC, in a 1206 package. 63A breaking capacity, quick-acting F characteristic.
✓ Total Stock: 610 pcs
$ Price Range: $0.35 - $1.03

3413.0219.22 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
610 pcs
On Request
610 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3413.0219.22 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Approval Agency
Automotive Grade
Breaking Capacity @ Rated Voltage
Current Rating
Current Rating (Amps)
Fuse Type
Halogen Free
Height
Housing Material
Length
Melting I²t
Mounting Type
Operating Temperature
Package / Case
Response Time
SVHC Present
Storage Temperature
Voltage Rating
Width
View Similar Products (0)

3413.0219.22 Description

Short technical summary and product information.

The Schurter 3413.0219.22 is a surface mount, fast-acting fuse from the USI 1206 series. It is rated for 2A continuous current with a voltage rating of 32VAC and 63VDC. The fuse offers a breaking capacity of 63A, suited for secondary protection in DC and AC circuits.



The fuse features a high melting I²t value of 0.79 and is impermeable to potting compound. It is housed in a fiber-reinforced plastic body with Ni/Au-plated copper terminals. The package is a standard 1206 (3216 metric) size, measuring 3.20mm x 1.60mm x 0.60mm.



Designed for surface mount assembly, it is compatible with reflow soldering. The fuse meets AEC-Q200 specifications for automotive applications (1A to 6.3A range). It holds approvals from UL, VDE, and cURus.

3413.0219.22 Quick Information

Product Type: Fuse
Series: USI 1206
Canonical Name: Schurter USI 1206 Series Surface Mount Fast-Acting Fuse, 2A, 32VAC, 63VDC, 1206 Package
Subcategory: Surface Mount Fuse

3413.0219.22 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

3413.0219.22 Estimated Pricing

Qty Low High
1+ $1.03 $1.03
5+ $0.85 $0.85
10+ $0.78 $0.78
50+ $0.65 $0.65
100+ $0.60 $0.60
250+ $0.54 $0.54
500+ $0.50 $0.50
1,000+ $0.46 $0.46
2,000+ $0.42 $0.42
3,000+ $0.40 $0.40
5,000+ $0.38 $0.38
7,000+ $0.36 $0.36
10,000+ $0.35 $0.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

3413.0219.22 Features

  • Fast-acting fuse with 2A current rating.
  • Rated for 32VAC and 63VDC operation.
  • Surface mount package in 1206 size.
  • AEC-Q200 qualified for automotive applications.
  • Approved by UL, VDE, and cURus.

3413.0219.22 Applications

  • Secondary protection in DC circuits.
  • Overcurrent protection in AC circuits.
  • Used in circuits with high inrush currents.
  • Suitable for automotive electronics applications.

3413.0219.22 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the 3413.0219.22 fuse?

The current rating is 2 A.

What is the voltage rating for this fuse?

The voltage rating is 32 VAC and 63 VDC.

What is the breaking capacity of the 3413.0219.22?

The breaking capacity is 63 A.

What response time does this fuse have?

The response time is Fast Blow (Quick-Acting F).

What is the package type for this component?

The package is 1206 (3216 Metric) surface mount.
