| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,500 pcs
|
8500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Contact Finish | |
| Contact Material | |
| ELV | |
| Gender | |
| Halogen Content | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Packaging Method | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

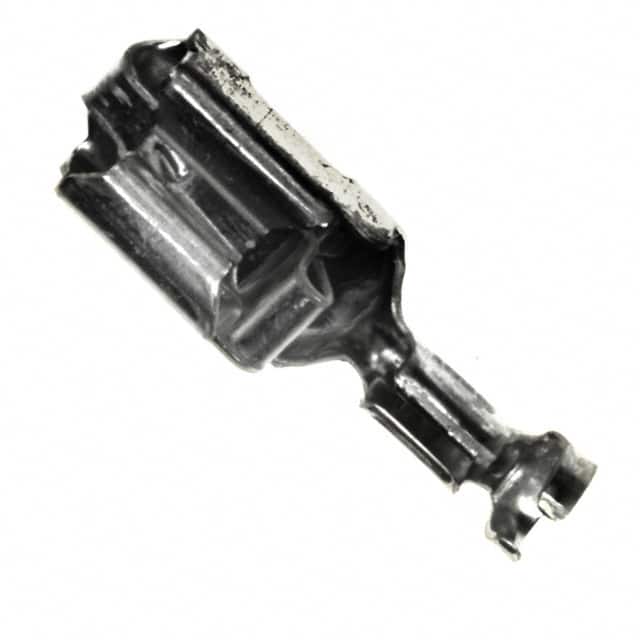

The TE Connectivity 341002-6 is a standard quick disconnect receptacle (female) designed for in-line, free-hanging mounting. It accepts 14-18 AWG wire and features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) thickness.
The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. Termination is via crimp, ensuring a secure mechanical and electrical connection. The overall length is 22.25mm (0.876").
This component is RoHS, REACH, ELV, and China RoHS compliant, and has low halogen content. It is supplied in loose piece packaging. The part is active and manufactured by TE Connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.36 | $0.36 |
| 25+ | $0.34 | $0.34 |
| 50+ | $0.32 | $0.32 |
| 100+ | $0.31 | $0.31 |
| 250+ | $0.29 | $0.29 |
| 500+ | $0.27 | $0.27 |
| 1,000+ | $0.26 | $0.26 |
| 2,500+ | $0.24 | $0.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The tab width is 0.250" (6.35mm).
It accepts 14-18 AWG wire.
No, it is non-insulated.
Crimp termination.
Brass contact with tin plating.
Free hanging (in-line).
Yes, it is RoHS compliant.
