| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity @ Rated Voltage | |
| Breaking Capacity AC | |
| Breaking Capacity DC | |
| Climatic Category | |
| Current Rating | |
| Current Rating (Amps) | |
| ESD Classification | |
| Flammability Rating | |
| Fuse Type | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Length | |
| Load Humidity Test | |
| Material: Housing | |
| Material: Terminals | |
| Medical Grade | |
| Melting I²t | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operational Life | |
| Package / Case | |
| Resistance to Soldering Heat | |
| Resistance to Solvents | |
| Response Time | |
| SVHC Present | |
| Solderability | |
| Soldering Methods | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Strength | |
| Thermal Shock | |
| Unit Weight | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC | |
| Width |

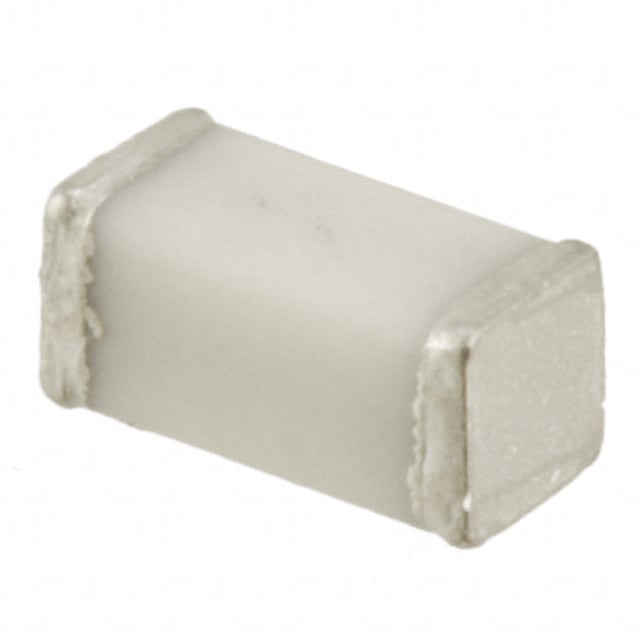

The Schurter 3410.0027.02 is a 500mA fast blow (super-quick-acting FF) board mount fuse designed for surface mount applications. It is rated for 125VAC and 125VDC with a breaking capacity of 50A AC and 300A DC. The fuse features a ceramic housing with tin-plated nickel terminals and is housed in a 2-SMD square end block package measuring 3.20mm x 1.55mm x 1.55mm.
This fuse is suitable for high reliability applications requiring hermetic sealing, such as medical equipment, offshore installations, and defense systems. It operates over a wide temperature range from -55°C to 150°C and meets MIL-STD-202 standards for thermal shock, humidity, and solvent resistance. The melting I²t is 0.0042 A²s, and the operational life is 1000 hours at 0.6 times rated current at 70°C.
The component is compatible with reflow and wave soldering methods, with solderability per IEC 60068-2-58 and resistance to soldering heat per J-STD-020D. It is classified as MSL 1 and has a flammability rating of UL 94V-1. The fuse is approved by cURus, UL, and UR.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.63 | $5.63 |
| 5+ | $4.67 | $4.67 |
| 10+ | $4.31 | $4.31 |
| 50+ | $3.57 | $3.57 |
| 100+ | $3.29 | $3.29 |
| 250+ | $2.96 | $2.96 |
| 750+ | $2.60 | $2.60 |
| 1,500+ | $2.39 | $2.39 |
| 2,250+ | $2.28 | $2.28 |
| 3,750+ | $2.19 | $2.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 500 mA.
It is rated for 125 VAC and 125 VDC.
The breaking capacity is 50 A AC and 300 A DC.
It is a fast blow (super-quick-acting FF) fuse.
The package is 2-SMD, square end block.
The operating temperature range is -55°C to 150°C.
It is approved by cURus, UL, and UR.
