| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity @ Rated Voltage | |
| Breaking Capacity Range | |
| Case Resistance | |
| Climatic Category | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Height | |
| Housing Material | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Melting I²t | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operational Life | |
| Package / Case | |
| Rated Voltage (DC) | |
| Resistance to Soldering Heat | |
| Response Time | |
| SVHC Present | |
| Solderability | |
| Soldering Methods | |
| Storage Temperature | |
| Storage Temperature Range | |
| Terminal Material | |
| Termination Style | |
| Unit Weight | |
| Voltage Rating | |
| Width |

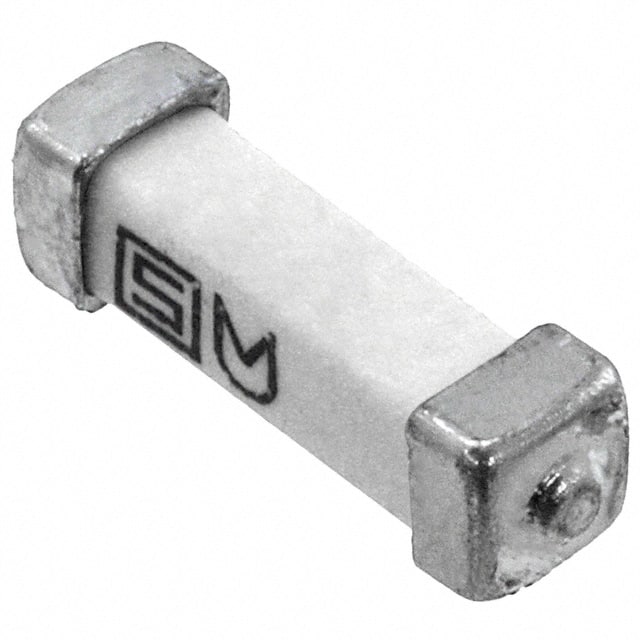

The Schurter UMF 250 series 3405.0173.24 is a surface mount fast blow fuse designed for primary and secondary protection on SMD PCBs. With a current rating of 5A and voltage rating of 250VAC / 125VDC, it offers a breaking capacity range of 100A to 500A. The fast-acting characteristic ensures rapid interruption in overcurrent conditions, with a low melting I²t value of 13.57 A²s for sensitive circuit protection.
This fuse is housed in a ceramic 2-SMD square end block package measuring 10.10mm x 3.00mm x 3.00mm. It is suitable for reflow and wave soldering, with solderability tested at 245°C for 3 seconds and resistance to soldering heat at 260°C for 10 seconds per IEC 60068-2-58. The operating temperature range spans -55°C to 125°C, and it meets Moisture Sensitivity Level 1 (MSL 1) per J-STD-020.
The UMF 250 is impermeable to potting compounds, enabling hermetic seals for intrinsically safe applications per ATEX and IECEx. Applications include battery management systems, medical equipment, power supplies, and illumination. Approvals include cURus and VDE, with UL UR file number E41599.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.73 | $1.73 |
| 5+ | $1.43 | $1.43 |
| 10+ | $1.32 | $1.32 |
| 50+ | $1.09 | $1.09 |
| 100+ | $1.01 | $1.01 |
| 250+ | $0.91 | $0.91 |
| 500+ | $0.84 | $0.84 |
| 1,000+ | $0.77 | $0.77 |
| 2,000+ | $0.71 | $0.71 |
| 4,000+ | $0.65 | $0.65 |
| 6,000+ | $0.62 | $0.62 |
| 10,000+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 A
250 VAC, 125 VDC
100 A - 500 A
Fast Blow (Quick-Acting F)
2-SMD, Square End Block
cURus, VDE
-55°C to 125°C
