| Category | |
| Manufacturer Name | |
| Admissible Ambient Temperature | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Case Resistance | |
| Characteristic | |
| Climatic Category | |
| Current Rating (Amps) | |
| Flammability | |
| Fuse Type | |
| Height | |
| Housing Material | |
| Lead Style | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Rated Current Range | |
| Rated Voltage (DC) | |
| Rated Voltage AC | |
| Resistance to Soldering Heat | |
| Response Time | |
| Solderability | |
| Soldering Methods | |
| Storage Conditions | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Unit Weight | |
| Voltage Rating | |
| Width |

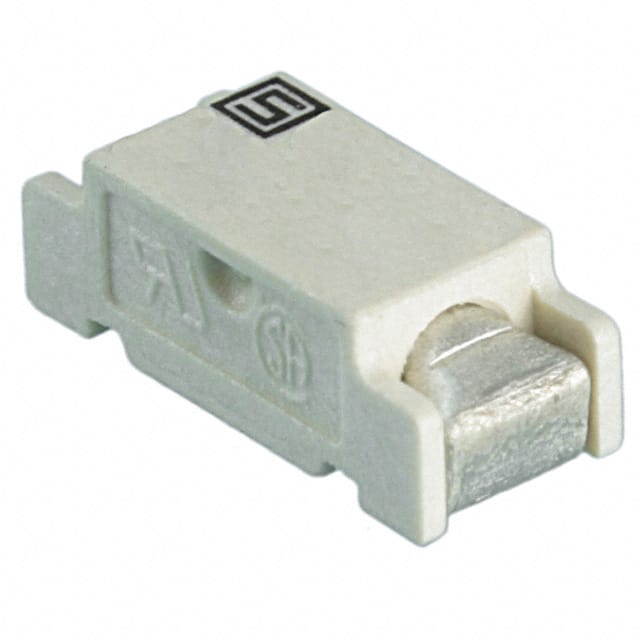

The Schurter 3403.0018.24 is a surface mount fuse from the OMF 250 series, designed for primary protection on SMD PCBs. It is directly solderable onto printed circuit boards.
Rated at 1.6A and 250VAC/VDC, this fast-acting fuse offers a breaking capacity of 100A. It features a quick-acting F characteristic and a melting I²t of 0.84 A²s. The fuse is housed in a 2-SMD J-Lead package measuring 11.00mm x 4.60mm x 3.90mm.
The operating temperature range is -55°C to 125°C, with a climatic category of 55/125/21. It is approved by cURus and VDE, and complies with IEC 60127-4 and UL 248-14 standards. The housing is made of thermoplastic UL 94V-0, and terminals are copper alloy with tin plating.
Mounting is surface mount, suitable for reflow and wave soldering profiles. The moisture sensitivity level is MSL 1 (unlimited). Unit weight is 0.36 g.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.15 | $2.15 |
| 4,000+ | $1.02 | $1.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.6 A
250 VAC and 250 VDC
100 A at rated voltage
Fast Blow (Quick-Acting F)
2-SMD, J-Lead
-55°C to 125°C
cURus and VDE
