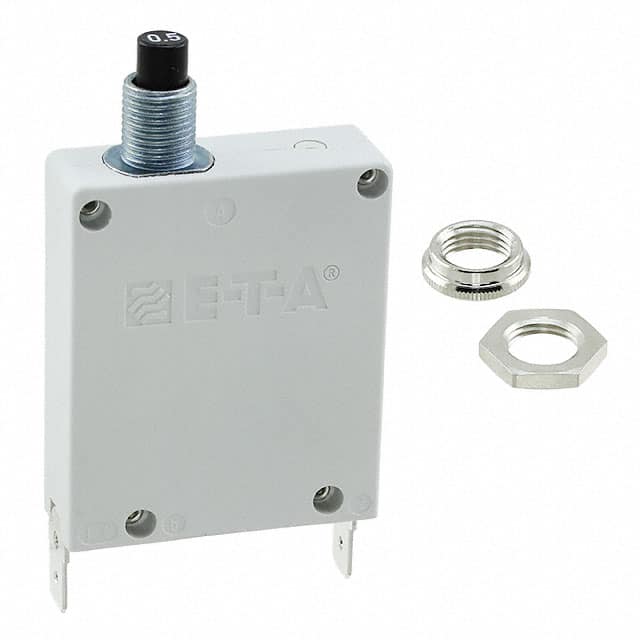

The E-T-A 3400-IG8-P10-0.5A is a single-pole thermal-magnetic circuit breaker from the 3300/3400 series. It features a press-to-reset, snap-action mechanism and is approved to EN 60934 (IEC 60934) and UL1077 standards.
This circuit breaker has a current rating of 500mA and can handle AC voltages up to 250V and DC voltages up to 80V. It is designed for panel mounting and offers a degree of protection of IP40 in the operating area.
Typical applications for this series include control systems, instrumentation, medical equipment, machine tools, and robotics. The breaker is built to withstand vibration up to 5g and shock up to 25g, making it suitable for demanding environments.
It is rated for 250VAC and 80VDC.
-30 to +60°C.
Panel mount.
1000A at 250VAC and 1000A at 80VDC per UL 1077.
Push-to-reset.
CSA C22.2 No 235, IEC 60934, and UL1077.
1 pole.
