| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |

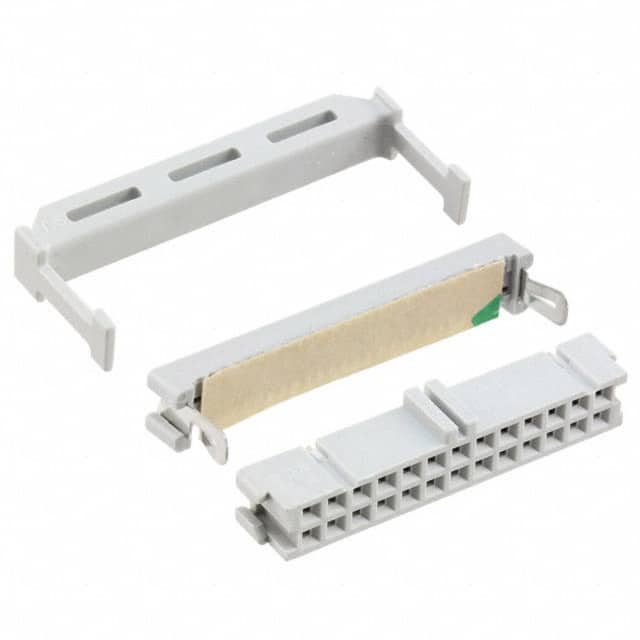

The 3M 3399-6626 is a 26-position IDC receptacle connector designed for ribbon cable termination. It uses insulation displacement contact (IDC) termination for 26-28 AWG wire, making it suitable for mass termination of ribbon cables. Contacts are gold plated with 30.0µin thickness, housed in a gray insulator with dual row configuration at 2.54mm pitch and row spacing. The free hanging (in-line) mounting style accommodates internal cabling in electronic assemblies. Additional features include feed through, polarizing key, and strain relief. This connector is rated RoHS3 compliant with an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.55 | $6.55 |
| 10+ | $5.57 | $5.57 |
| 25+ | $5.22 | $5.22 |
| 50+ | $4.97 | $4.97 |
| 100+ | $4.73 | $4.73 |
| 300+ | $4.38 | $4.38 |
| 600+ | $4.17 | $4.17 |
| 1,200+ | $3.97 | $3.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions arranged in 2 rows.
2.54mm (0.100 inch) pitch with 2.54mm row spacing.
Free hanging (in-line) mounting.
Insulation Displacement Connection (IDC) for ribbon cable.
26-28 AWG ribbon cable.
Gold with 30.0 microinches (0.76 µm) thickness.
Gray.
