| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

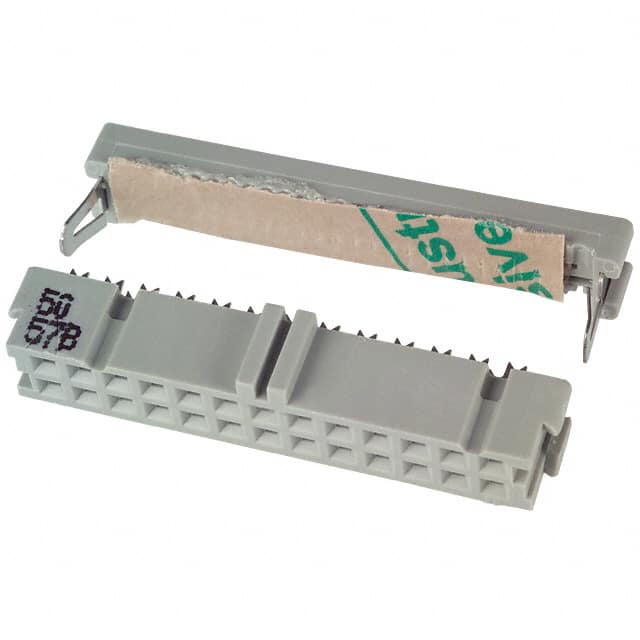

The 3M 3399-6600 is a 26-position IDC receptacle connector designed for use with 26-28 AWG ribbon cable. It features a free-hanging (in-line) mounting style with IDC termination for quick assembly. The connector has two rows with a 2.54mm (0.100") pitch and 2.54mm row spacing. Contacts are gold-plated female sockets with 30.0µin of gold. The gray housing includes feed-through and polarizing key features. This connector is suitable for internal wiring applications requiring reliable, mass-terminated connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.29 | $6.29 |
| 10+ | $5.34 | $5.34 |
| 25+ | $5.01 | $5.01 |
| 50+ | $4.77 | $4.77 |
| 100+ | $4.54 | $4.54 |
| 300+ | $4.20 | $4.20 |
| 600+ | $4.00 | $4.00 |
| 1,200+ | $3.81 | $3.81 |
| 2,700+ | $3.60 | $3.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions.
2.54mm (0.100").
Free hanging (in-line).
Gold plating, 30.0µin thick.
26-28 AWG, stranded or solid.
IDC (Insulation Displacement Connector).
Yes, feed through and polarizing key.
