| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Prop 65 | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque |

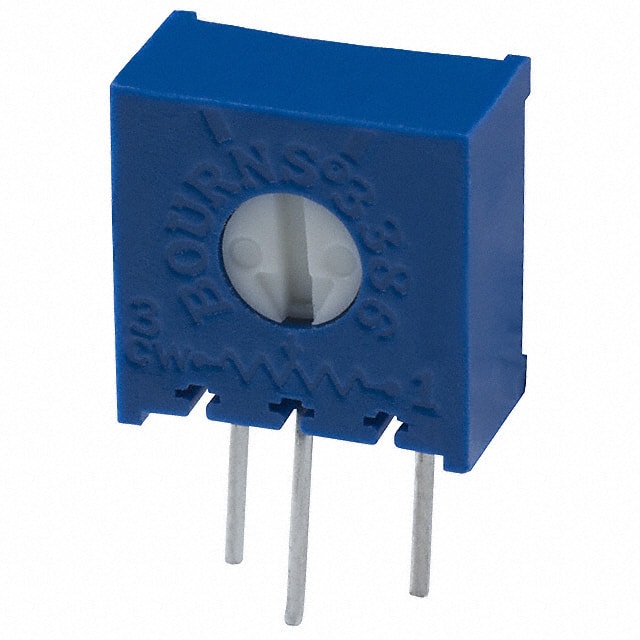

The Bourns 3386X-1-104 is a 3/8" square trimming potentiometer designed for industrial applications. It utilizes a Cermet resistive element, offering a resistance range from 10 ohms to 2 megohms with a standard tolerance of ±10%. This model features a single turn adjustment with a side adjustment type and infinite resolution.
With a power rating of 0.5W at 85°C, the 3386X-1-104 is suitable for various circuit adjustments. It operates within a temperature range of -55°C to +125°C and has a temperature coefficient of ±100ppm/°C. The potentiometer is sealed for environmental protection and meets stringent humidity, vibration, and shock test standards.
Designed for through-hole mounting, it terminates with PC pins. The physical characteristics include a mechanical angle of 310° and a torque of 5.0 oz-in max. The 3386X-1-104 is available on tape and reel, facilitating automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3386X-1-104 has a resistance of 100 kΩ.
The standard tolerance for the 3386X-1-104 is ±10%.
The power rating for the 3386X-1-104 at 85°C is 0.5W.
The temperature coefficient is ±100ppm/°C.
The 3386X-1-104 features side adjustment.
The resistive material is Cermet.
The standard packaging is 50 pieces per tube.
